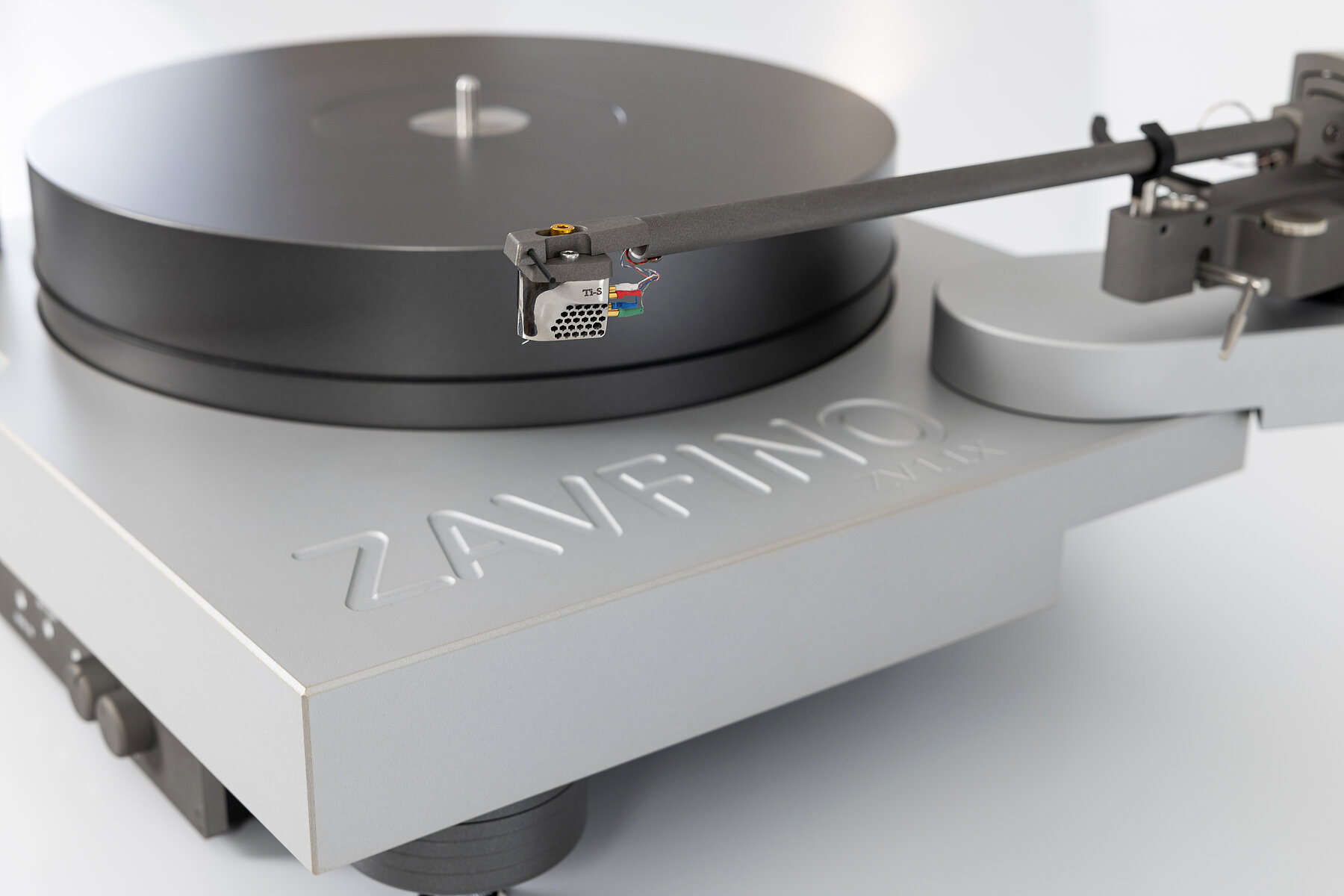

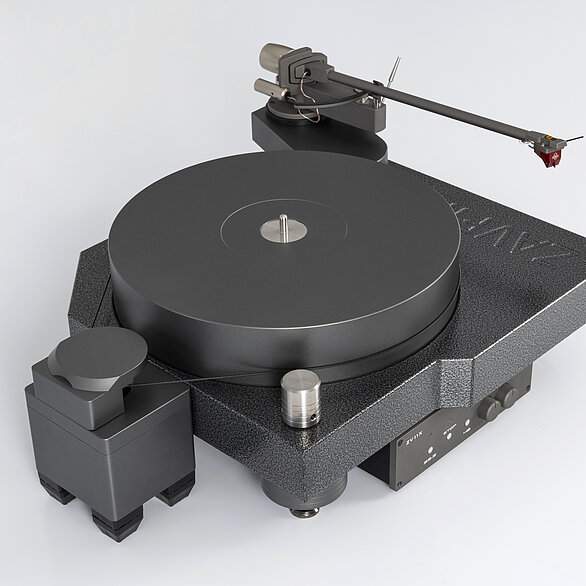

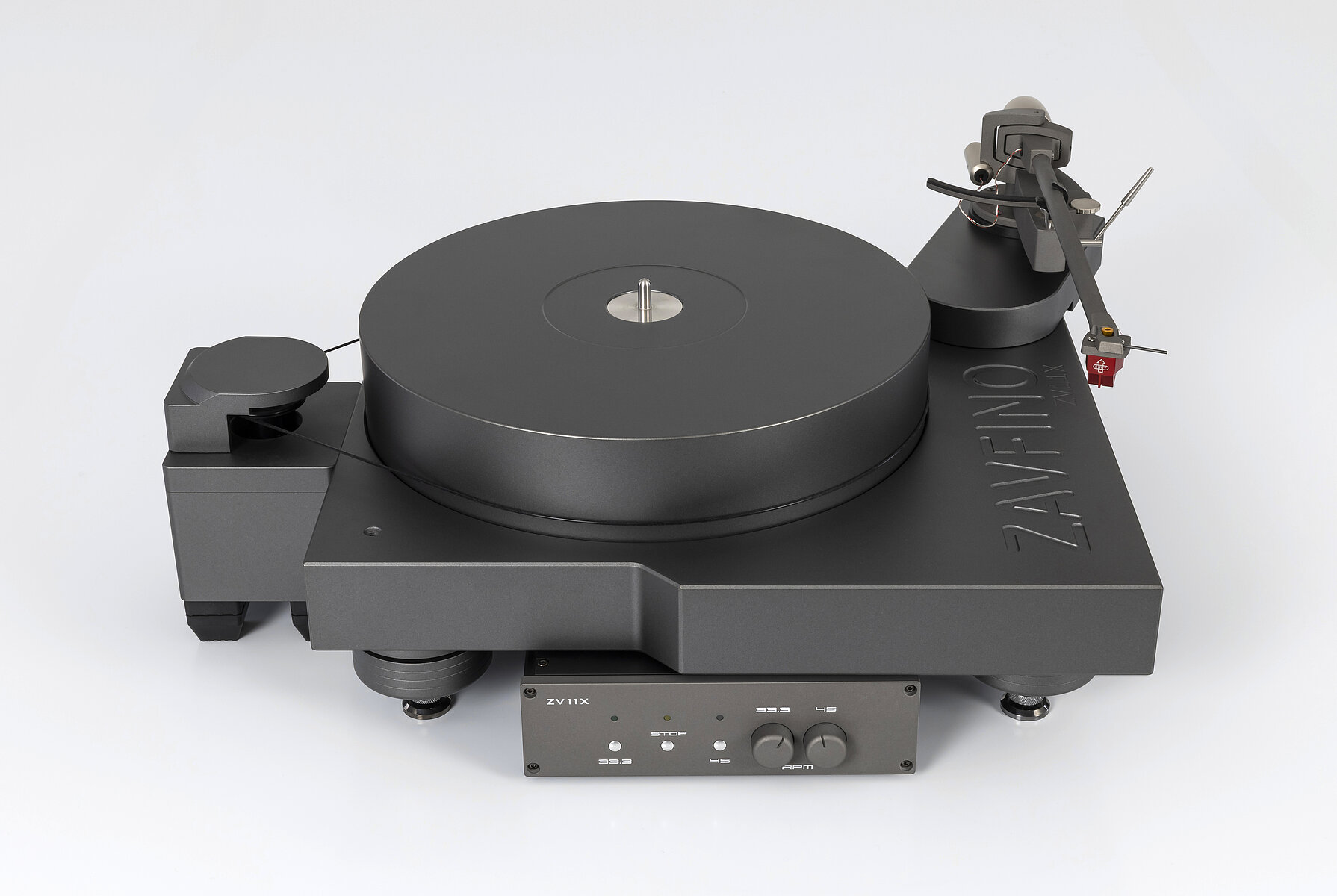

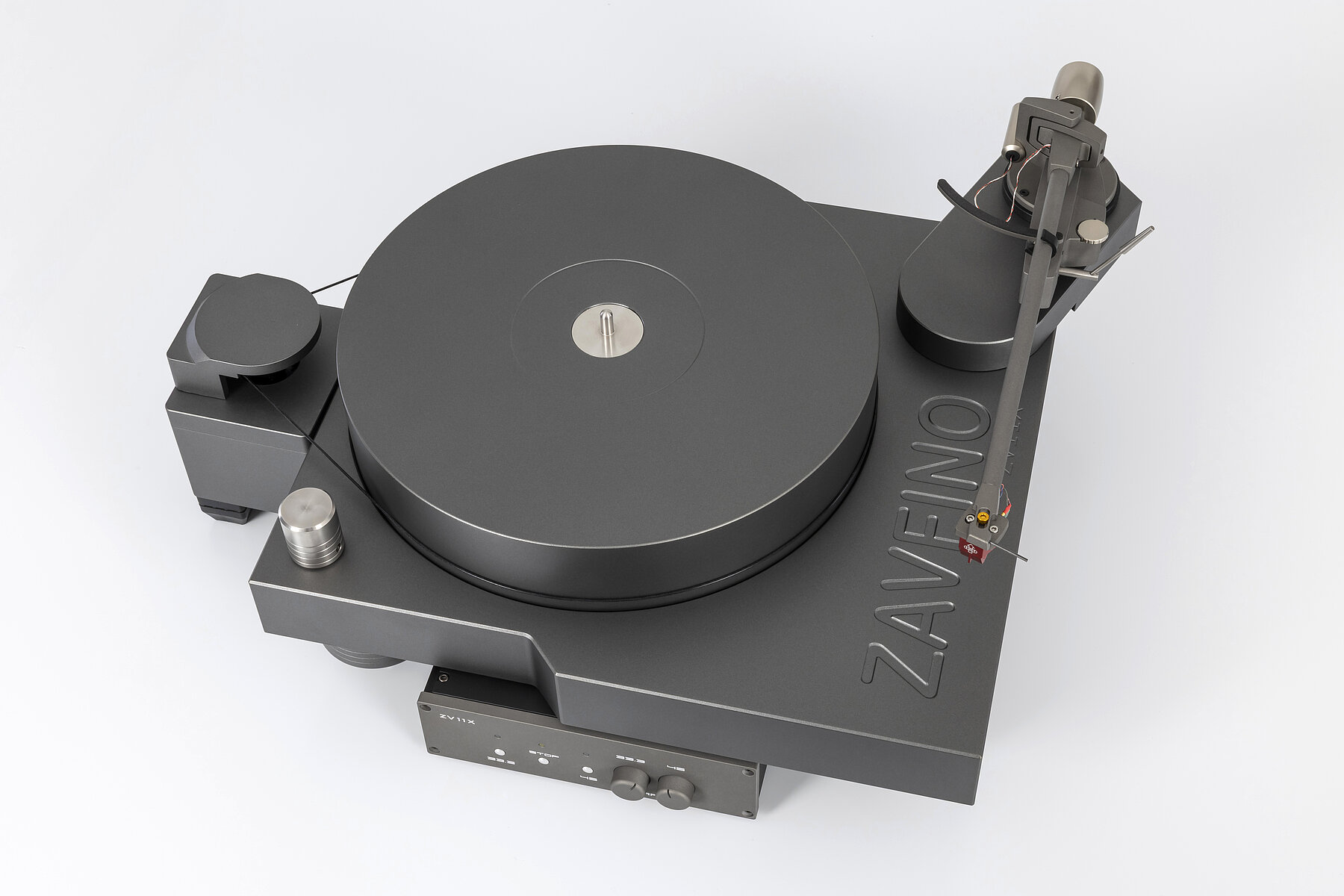

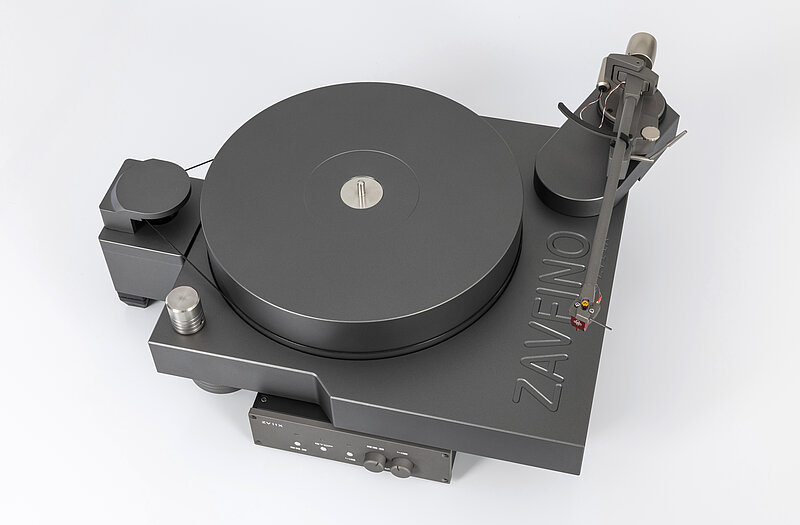

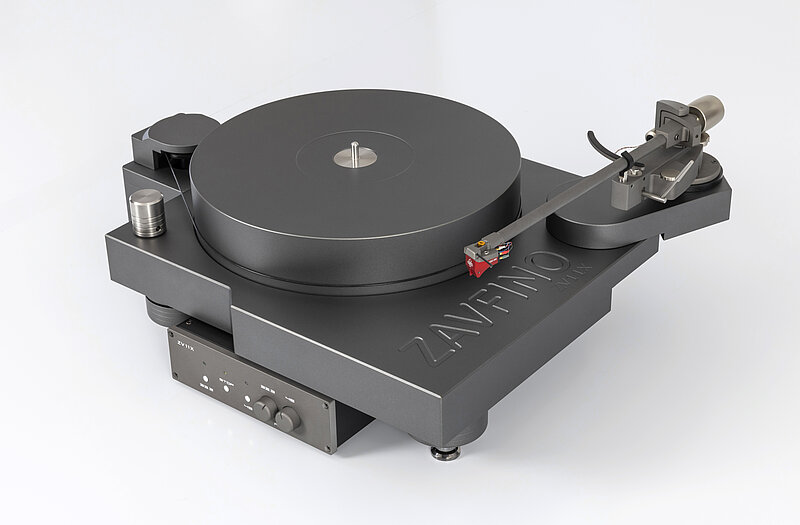

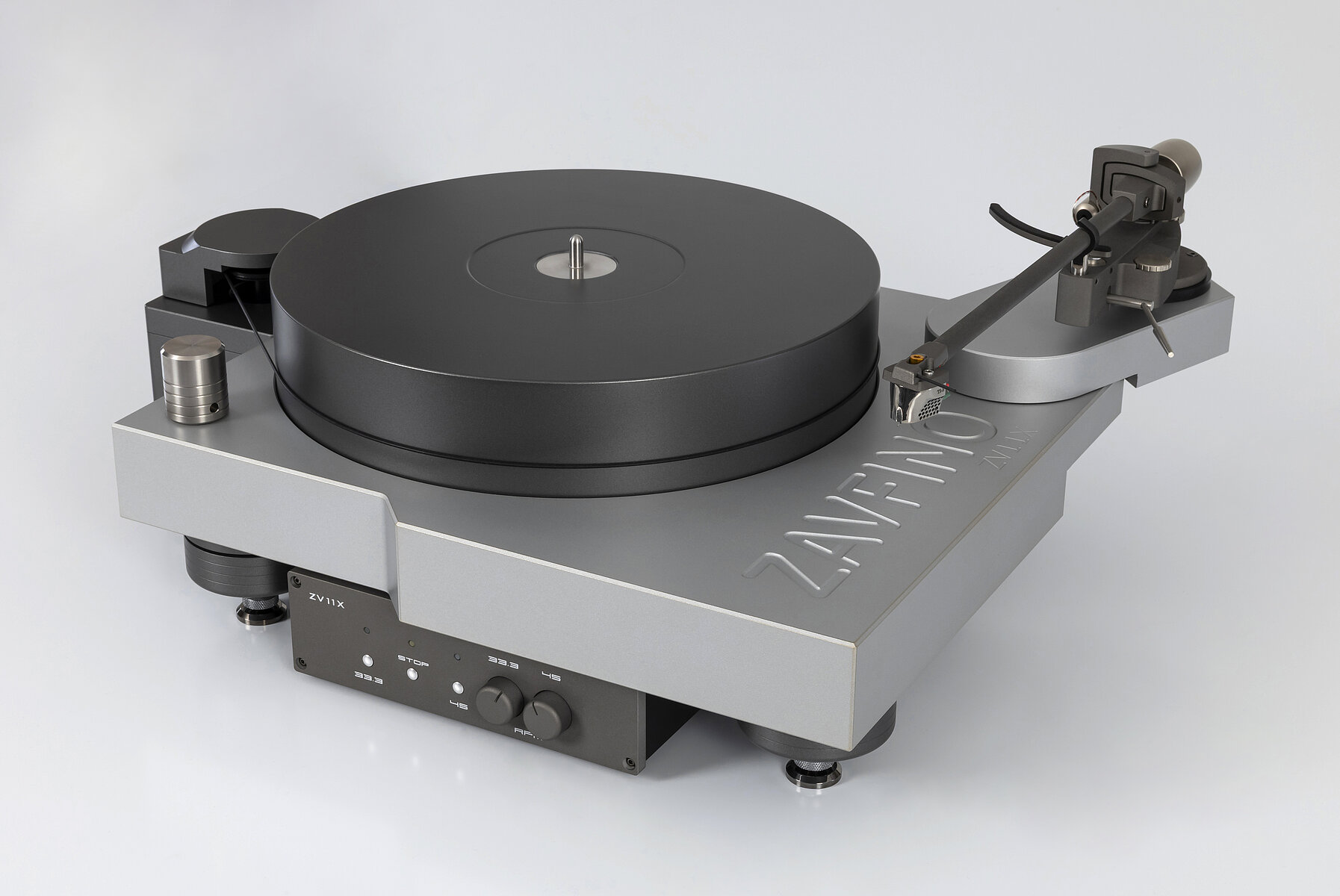

PRECISION IN EVERY MOVEMENT

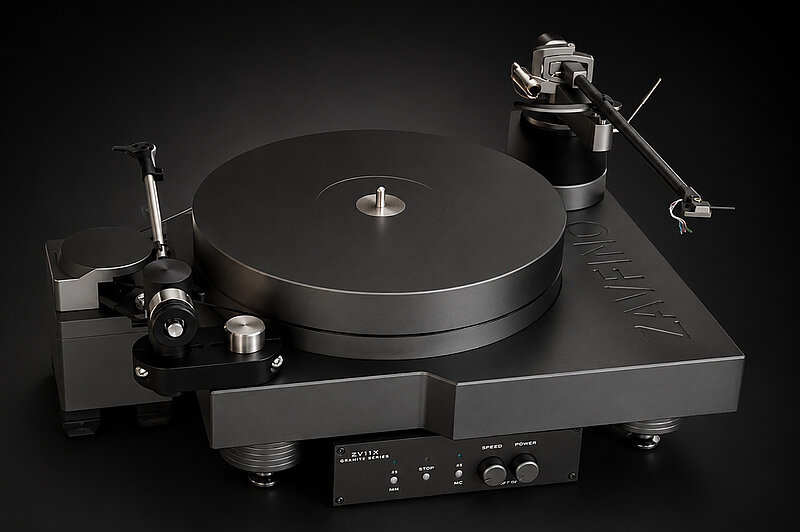

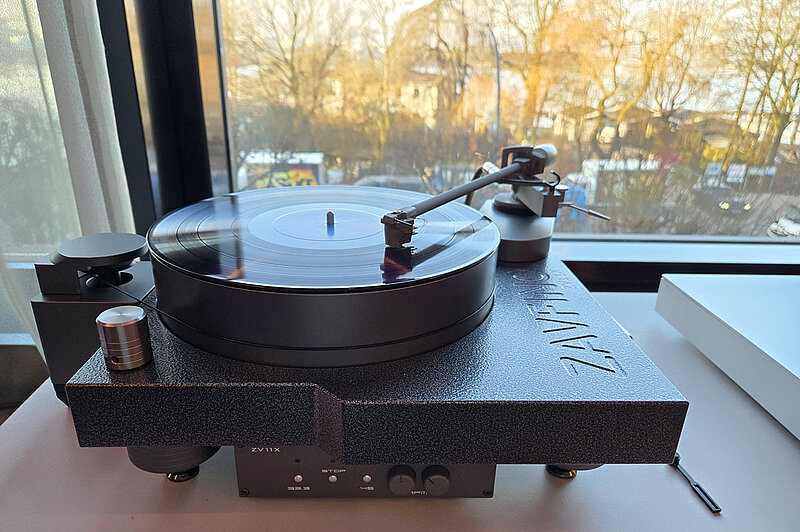

The ZV11X Granite turntable embodies ultimate mechanical precision and sonic transparency. Built for audiophiles who demand flawless playback, it delivers crystal-clear detail, effortless dynamics, and a musicality that reveals every nuance of your vinyl collection. Whether as the centerpiece of a high-end setup or as an upgrade to an existing system, the ZV11X Granite reveals new depths of clarity, spatial precision, and musical expression.
FEATURES & HIGHLIGHTS
Chassis:

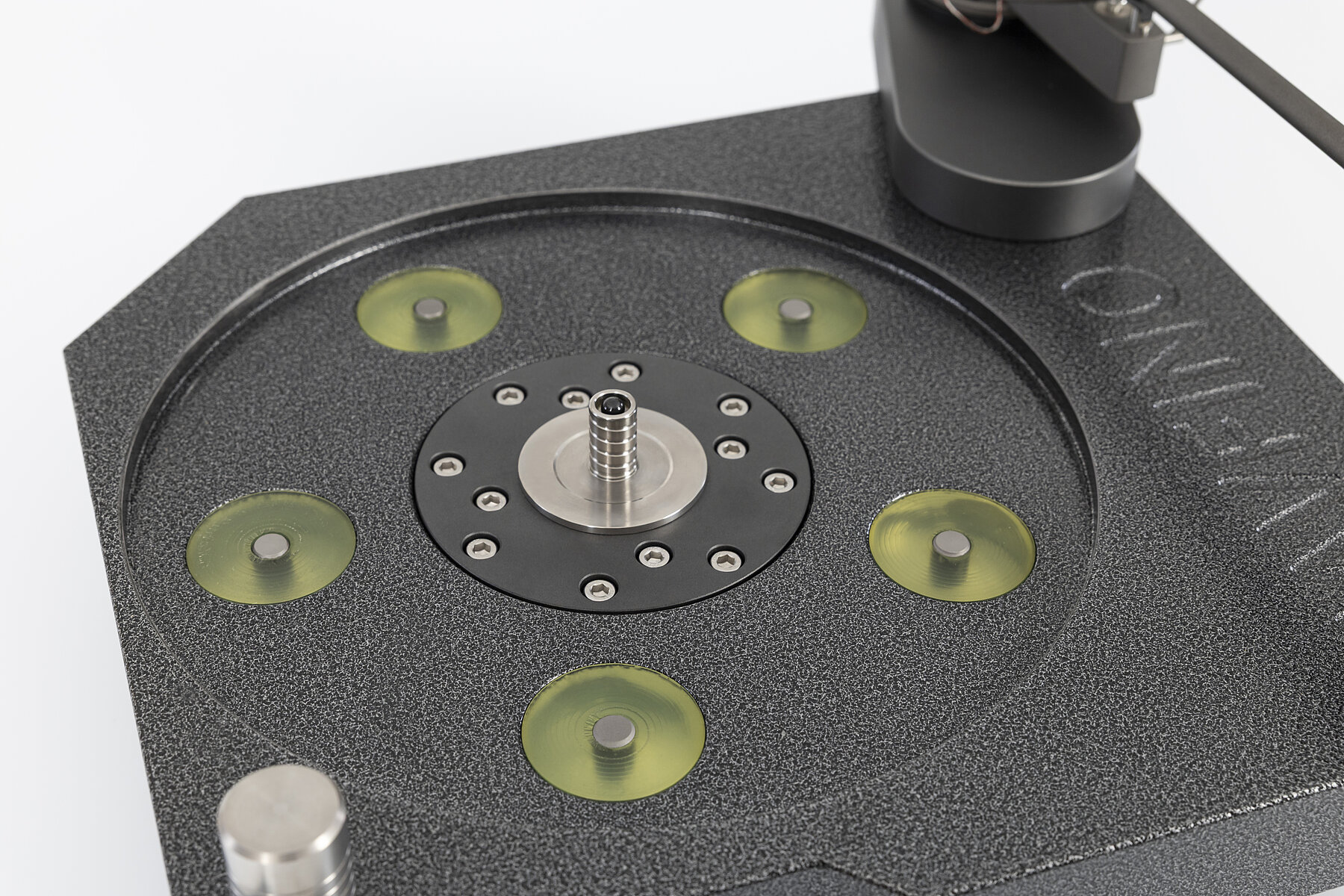

Mass-loaded chassis with anti-resonant damping for ultra-stable playback.
Premium Bearings:
Advanced bearing system for minimal friction and smooth operation.
Speed control:
Integrated speed control with fine electronic adjustment.
Platter:
CNC-machined platter for exceptional rotational accuracy.

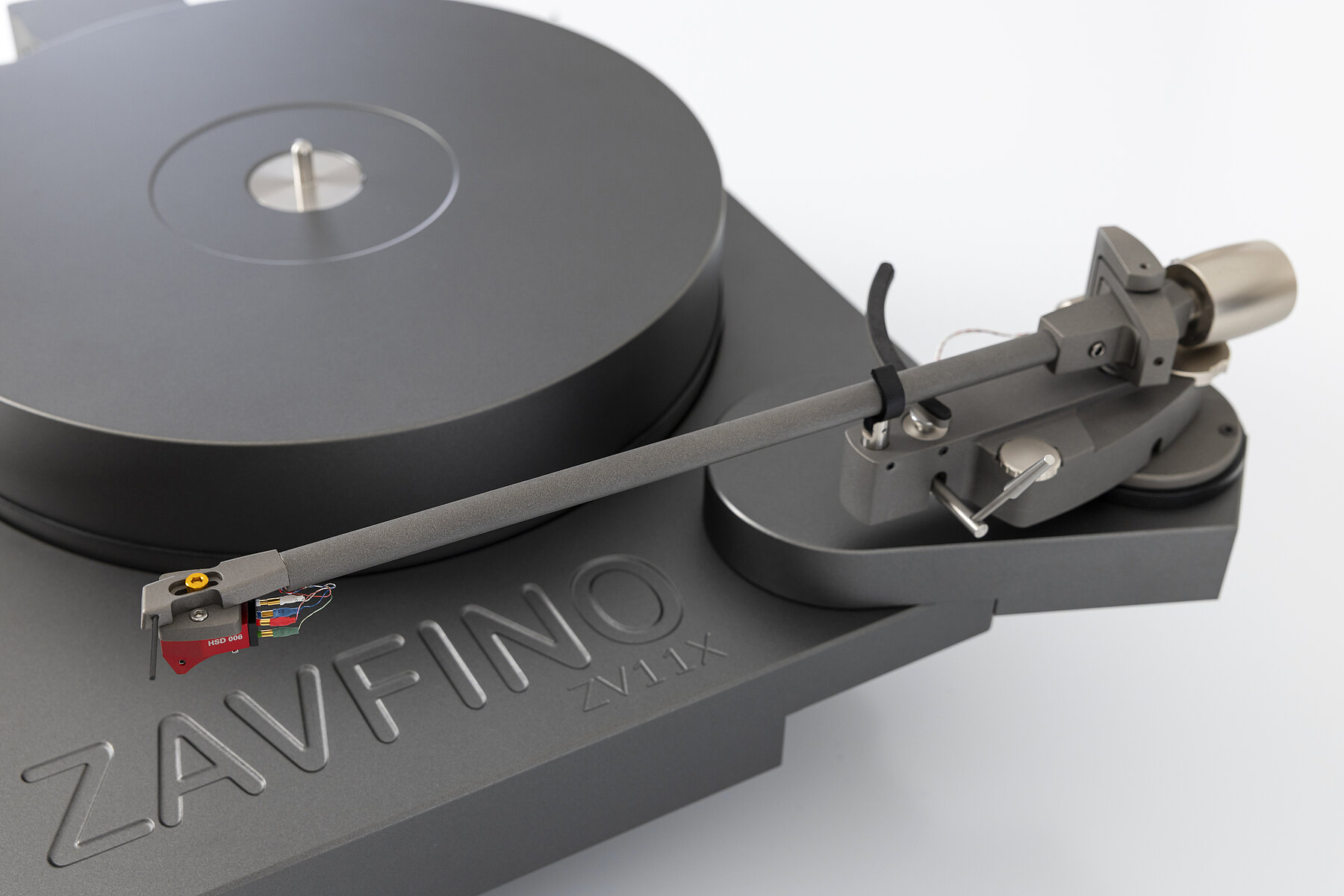

Tonearm:

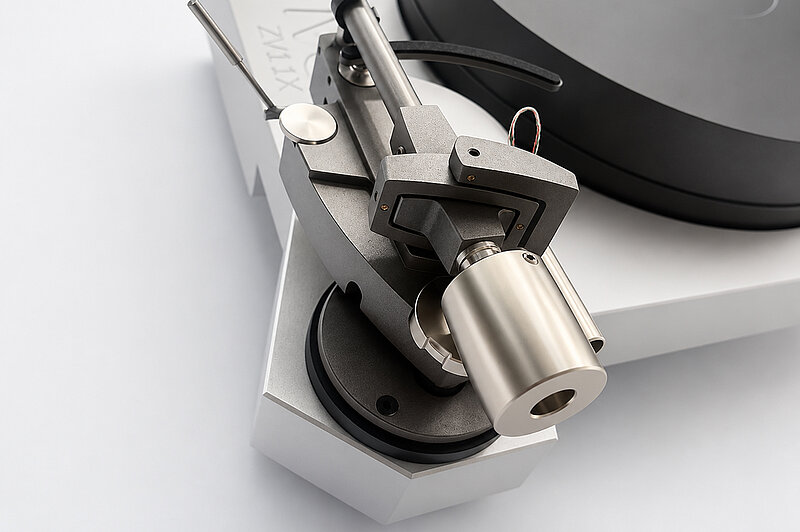

Hybrid carbon/aluminum tonearm for optimized resonance control.
ZV11X OPTIONS
CRAFTED TO REVEAL THE FINEST DETAILS
Every component of the Copperhead BRS is carefully chosen and assembled to eliminate distortion and reveal the hidden textures of your favorite recordings. Its design blends seamlessly with our turntables but can be integrated into any high-end system.
GENERAL SPECIFICATION
| PLINTH | |
|---|---|
| Material | CNC machined 6061 solid aluminum |
| Thickness | |
| Dimensions | L480/W380/H60 |
| Finish | Metalic Matte or Powder Coat |
| Resonance control 1 | Acrylic disc sandwich (5.0mm) |
| Foot | Solid 6061 aluminum with adjustable spike |
| Weight | 14.8kgs (without platter) |
| PLATTER | |
| Material | Solid Polyacetal (Acetal) Copolymer POM |
| Thickness | 60mm machined/contoured |
| Diameter | 298mm |

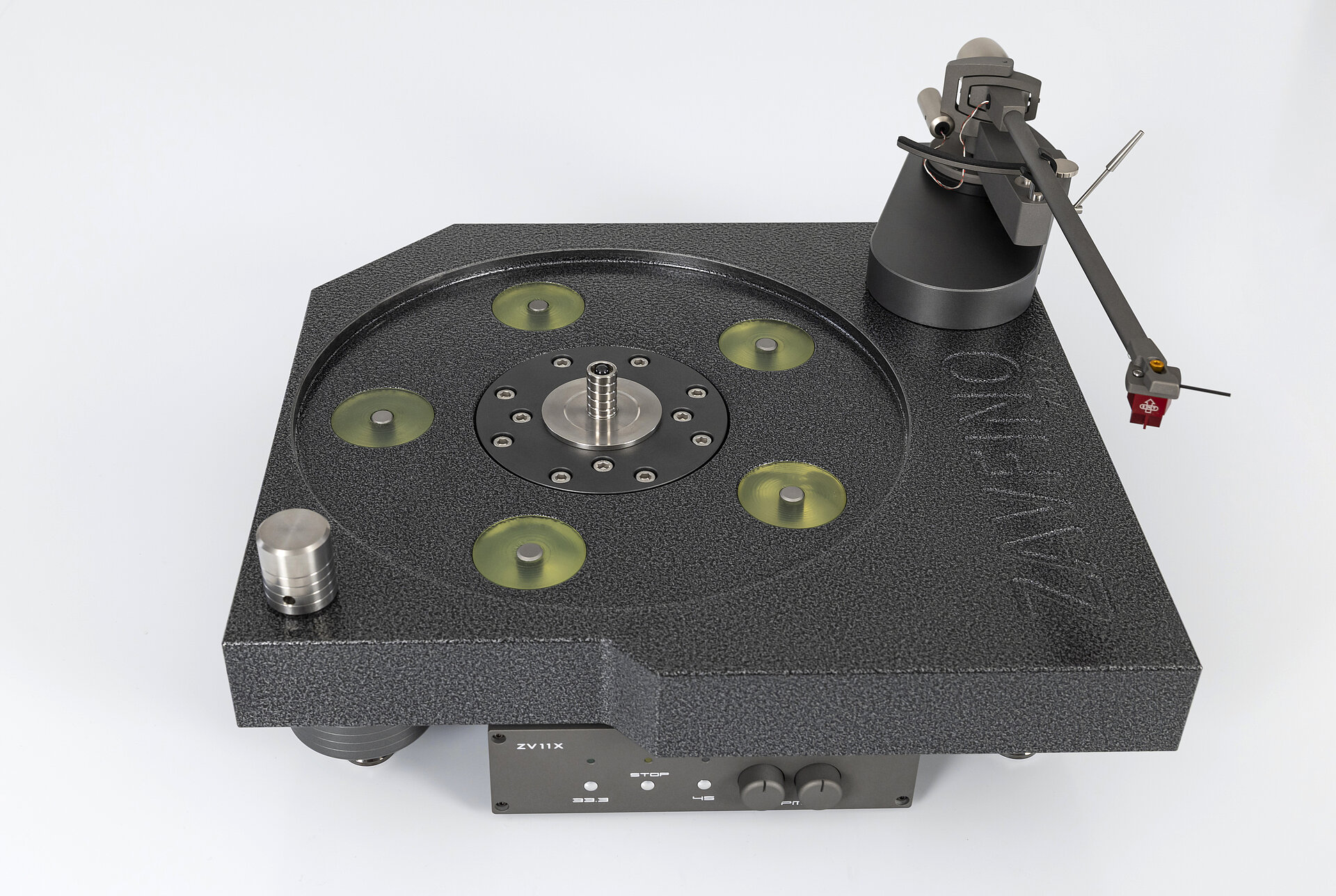

| Bearing cap | Stainless steel |
| JIS standard-bronze insert | |
| Teflon thrust plate | |
| Bearing shaft | Stainless steel with oil reservoir cup |
| Weight | 5.5kgs |
| MOTOR & HOUSING | |
|---|---|
| 9V/ low torque 50/60Hz with POM pulley | |
| Material | CNC machined 6061 solid aluminum block |
| CNC machined 6061 aluminum (Motor housing cap) | |
| Dimensions | L100/W90/H100 (mm) |
| Finish | Metalic Matte Automotive grade |
| Foot | Industrial grade rubber (non marking) |
| AC Power cable | Shielded/detachable |
| Belt | 1.6mm cast silicone |
| Weight | 2.0kgs |

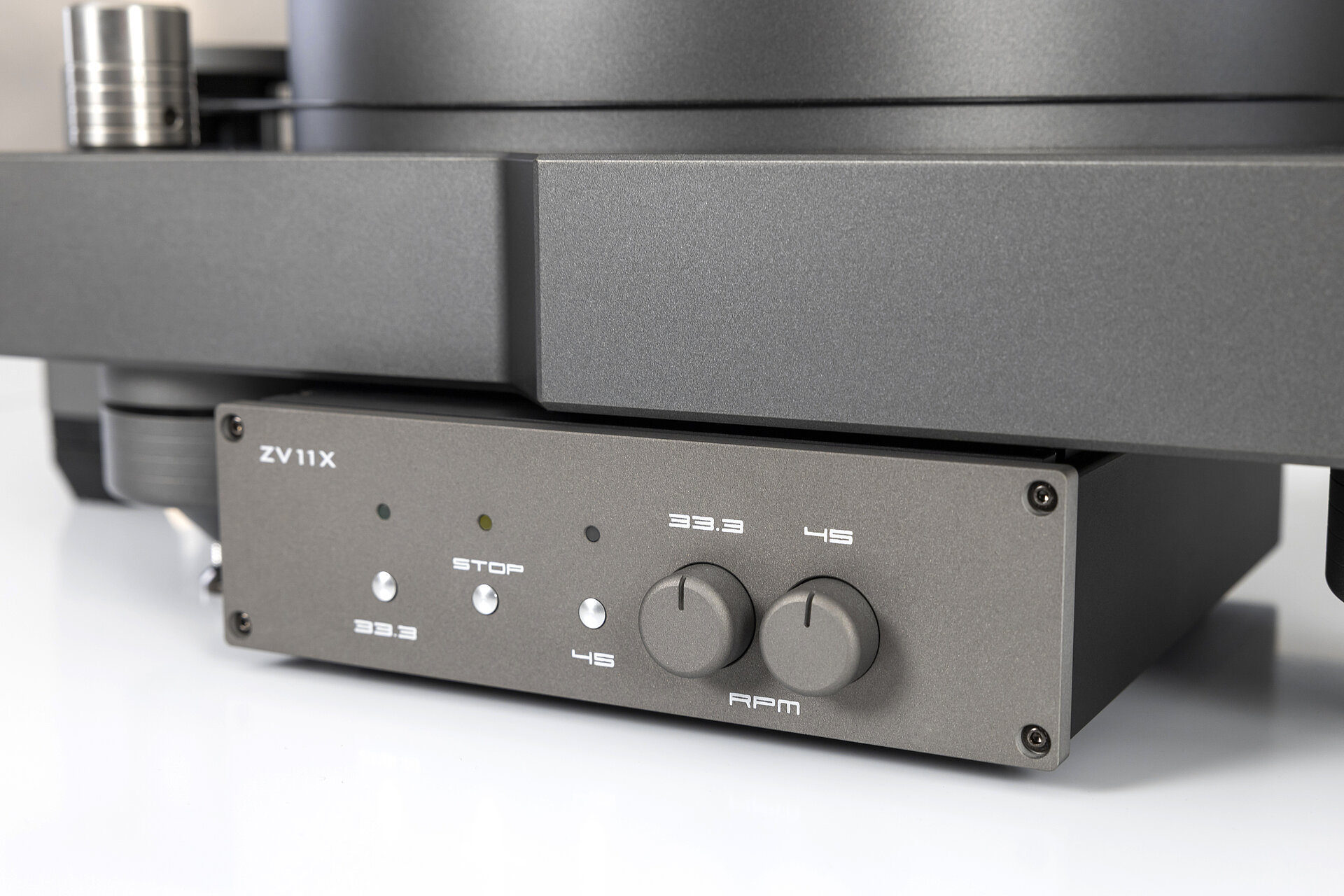

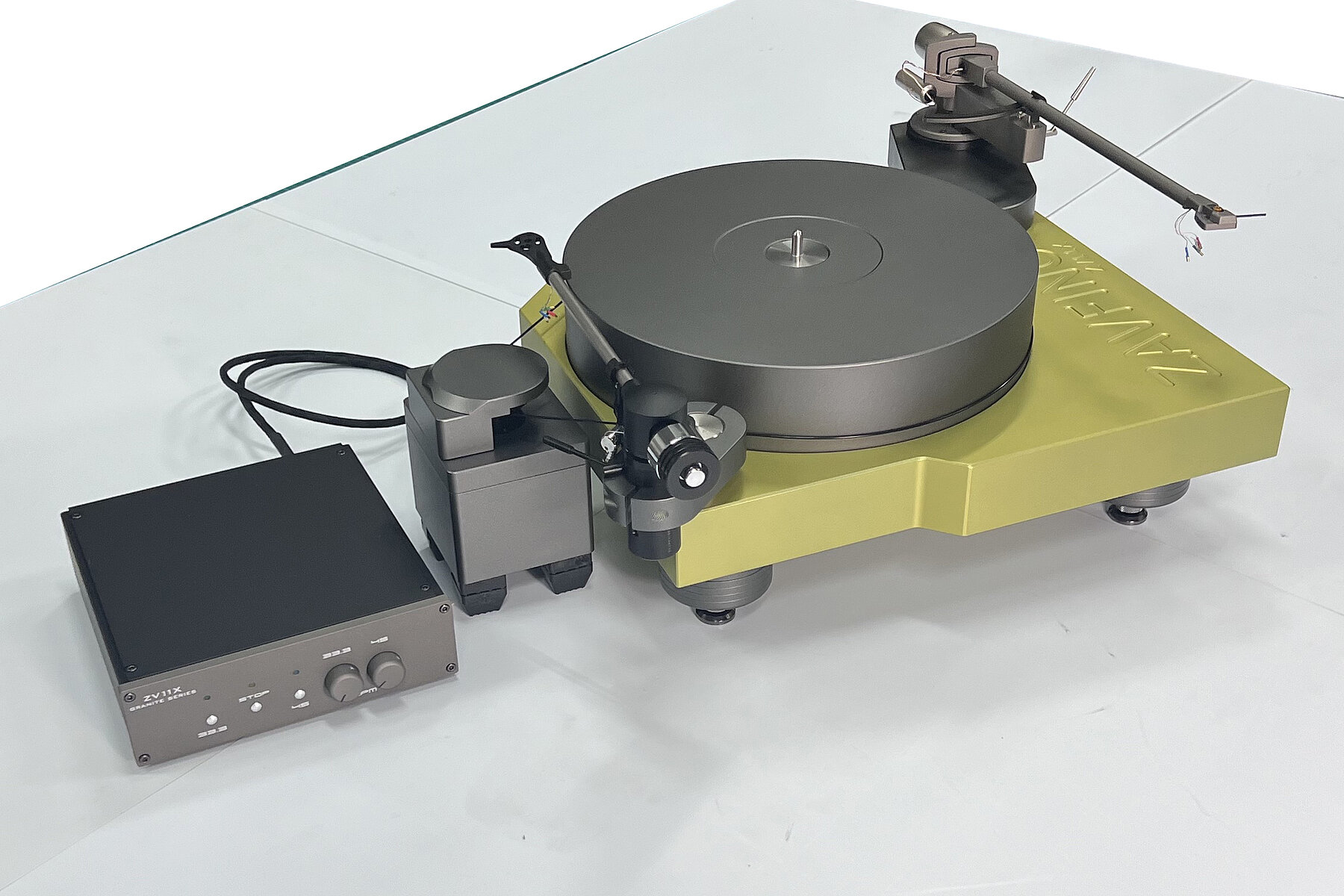

| SPEED REGULATOR | |
| 33.3rpm/45rpm | |
| Fine pitch control adjustment | |
| 100-240V, 50/60Hz | |
| Material | Aluminum 6061 |
| Finish | Anodized satin black, Matte paint or ceramic coating |
| Dimensions | L180/D200/H65 (mm) |
| Foot | Rubber non-marking |
| Weight | 2.0kgs |

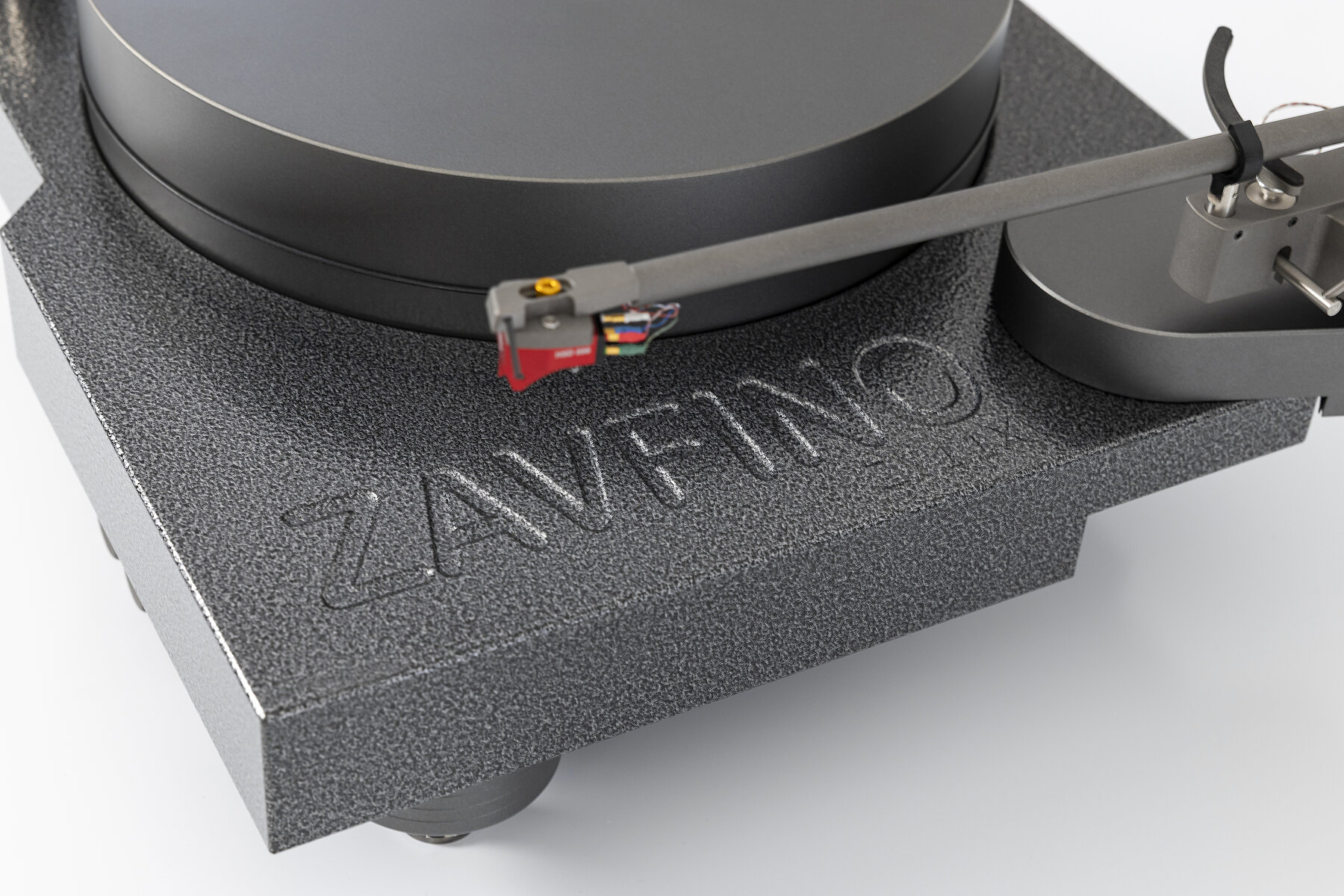

| COLOURS | |
| Charcoal Matte Metallic | |
| Powder Coat | |
| Custom finish |
