PRECISE AND UNIVERSALLY APPLICABLE

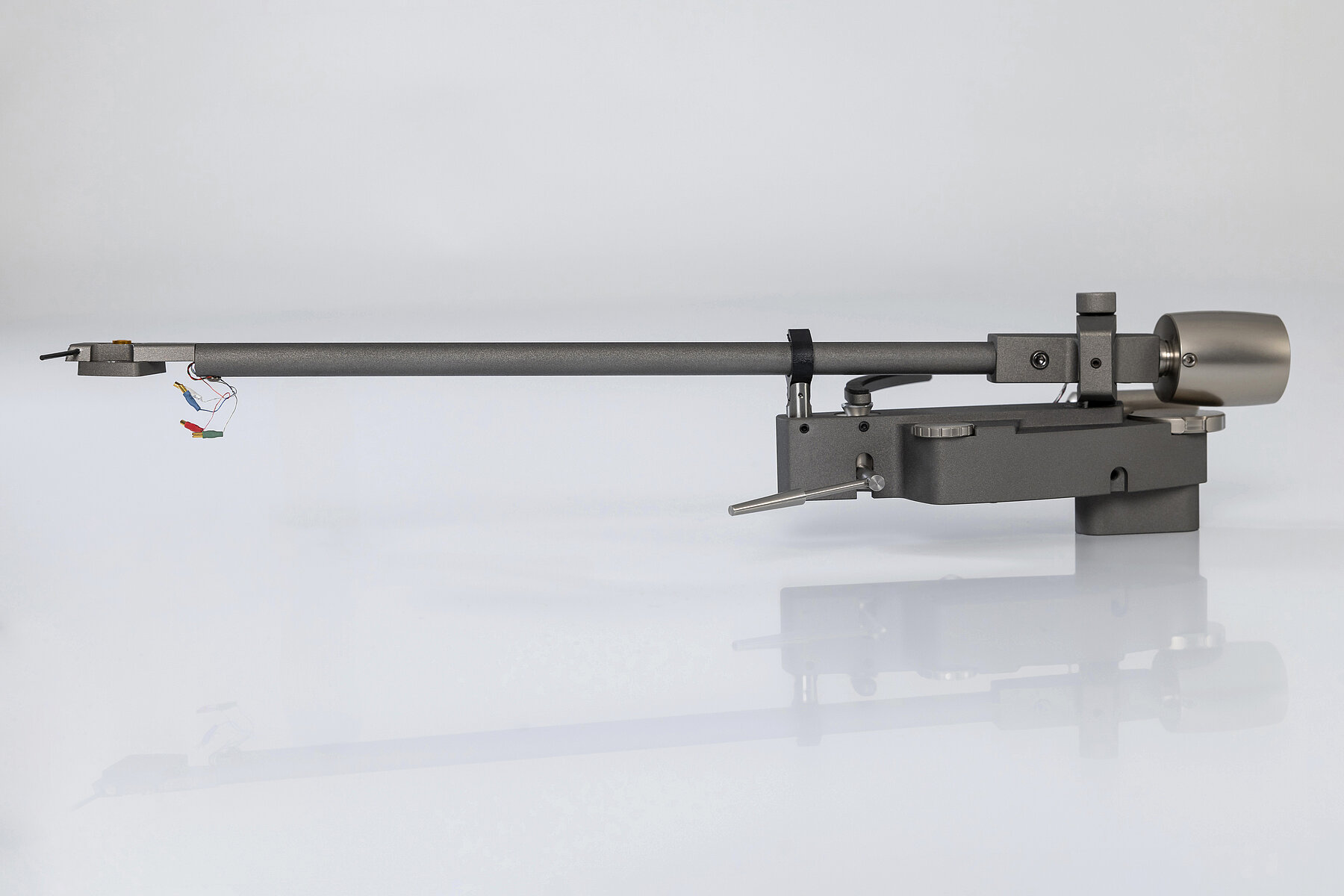

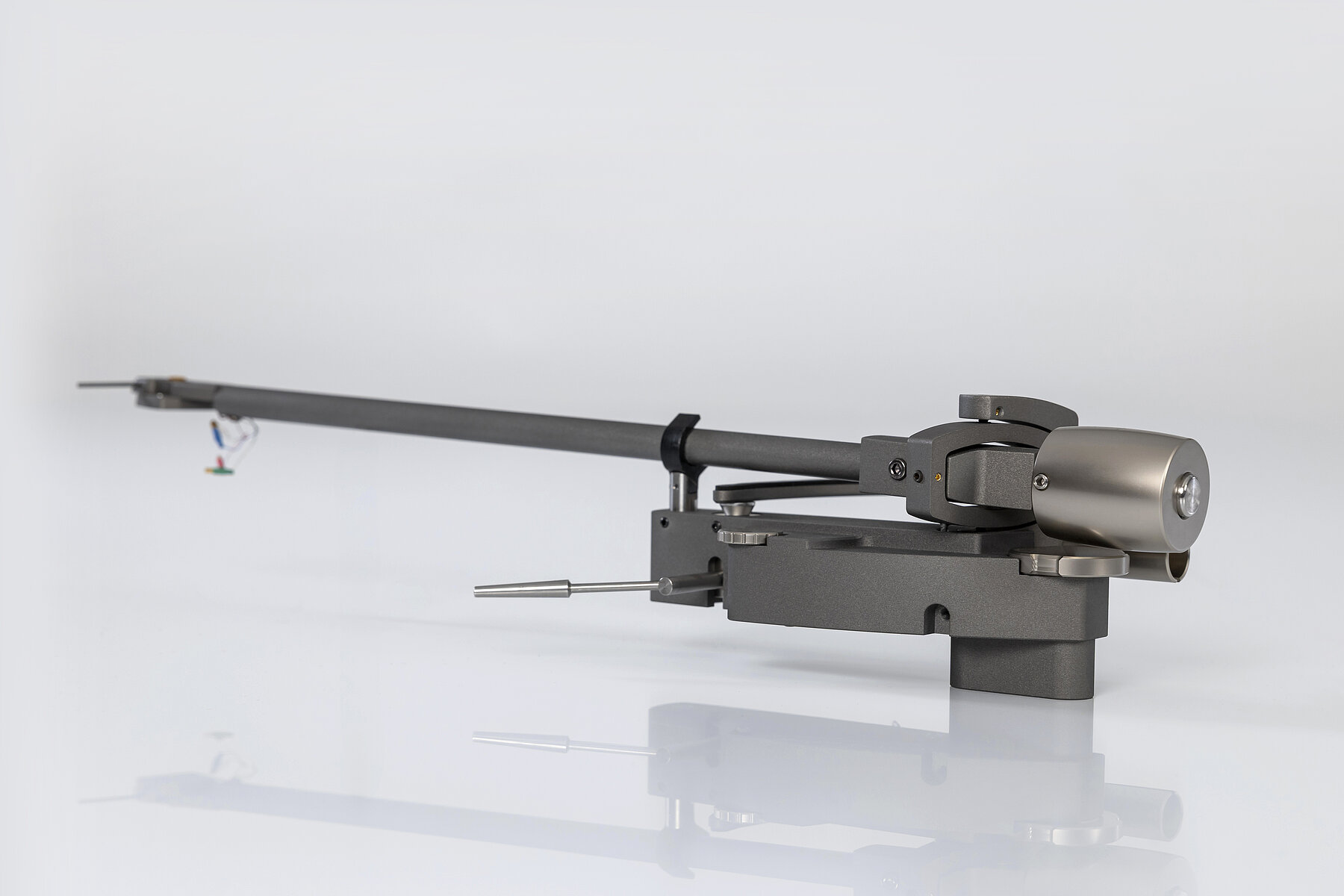

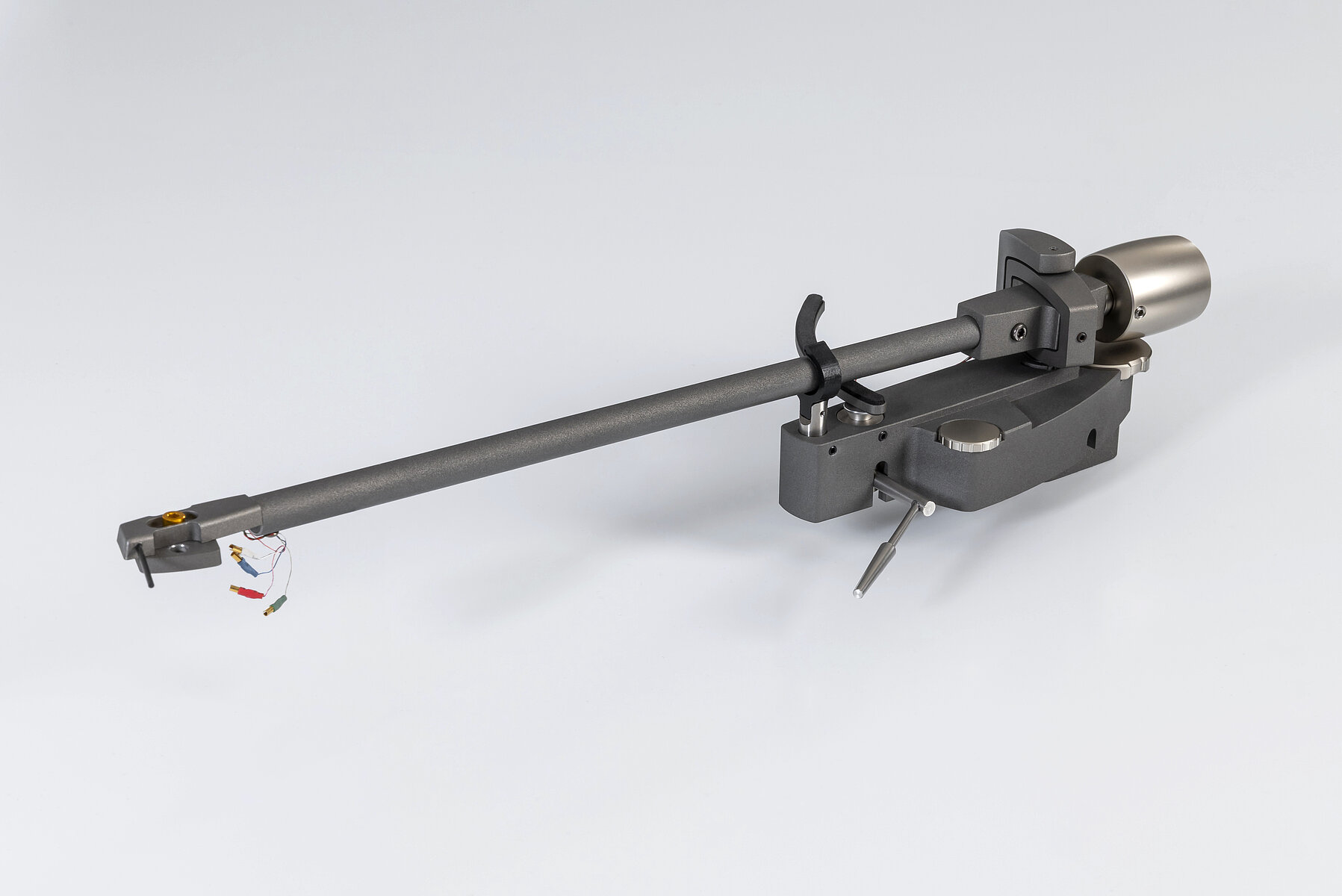

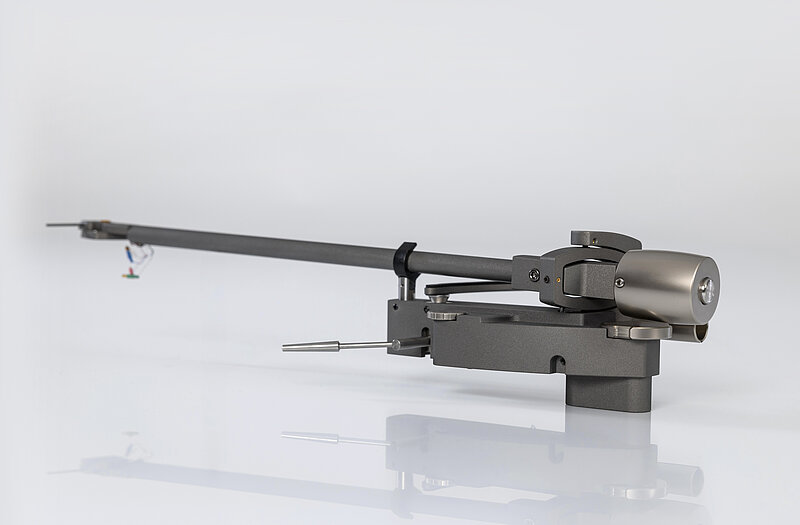

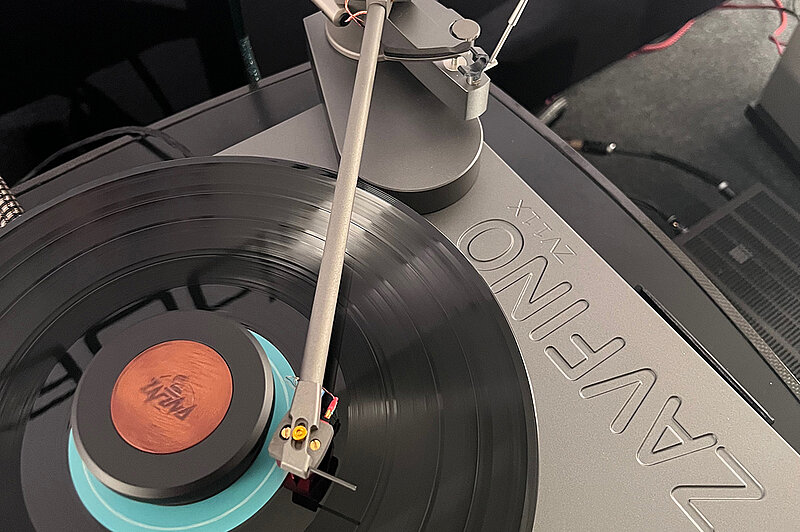

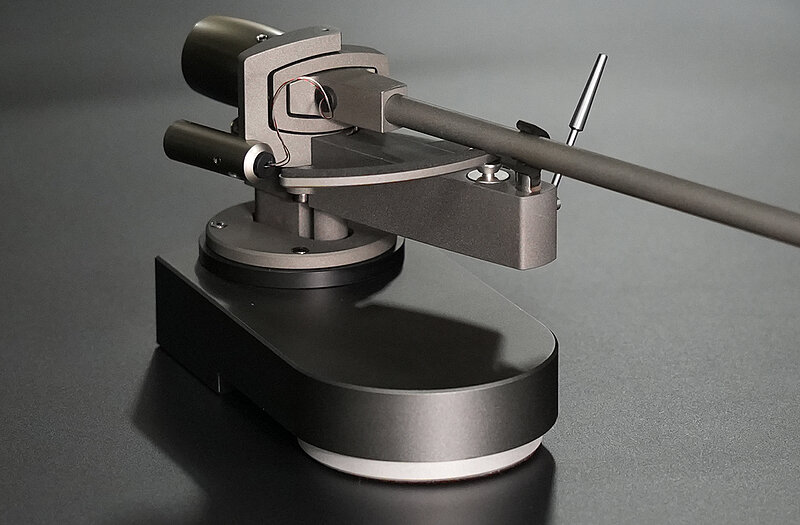

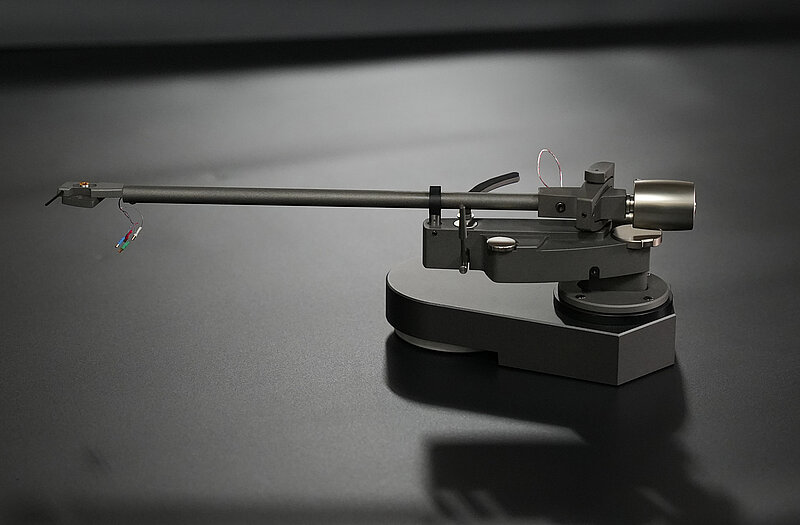

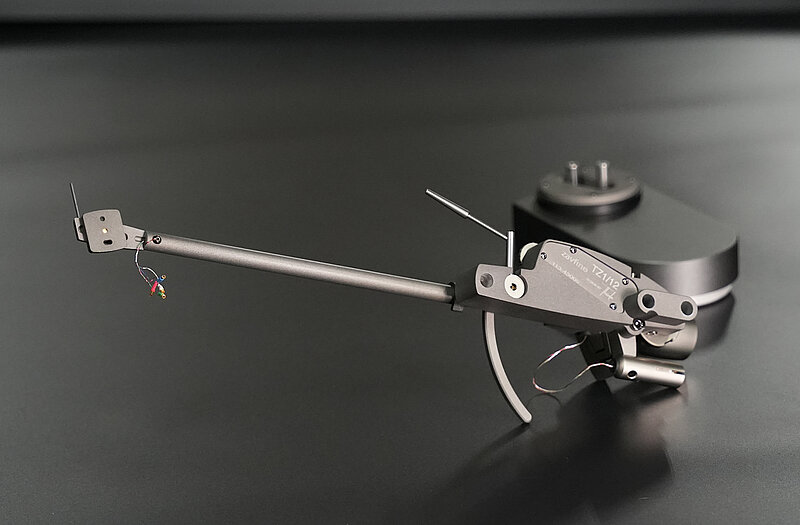

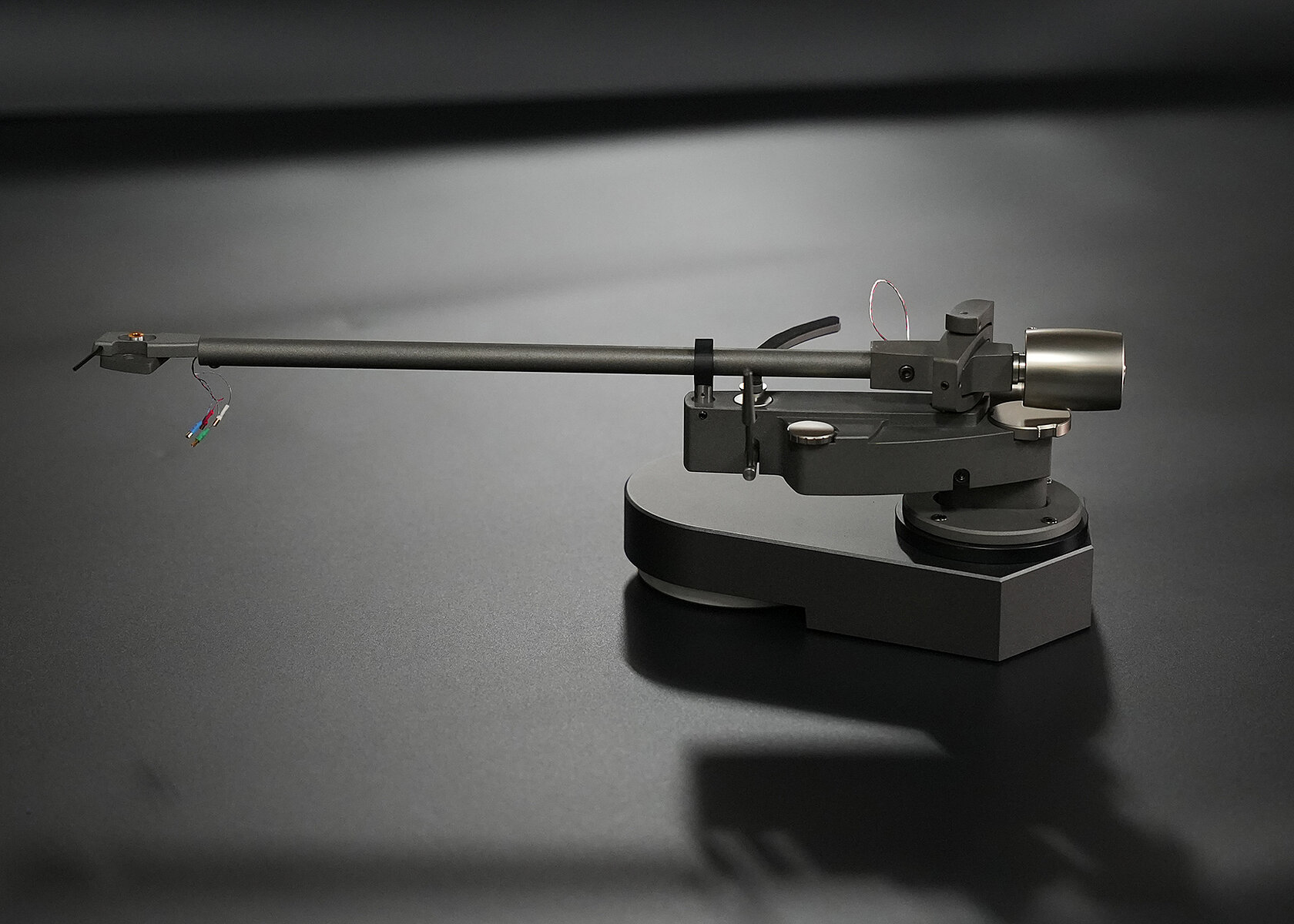

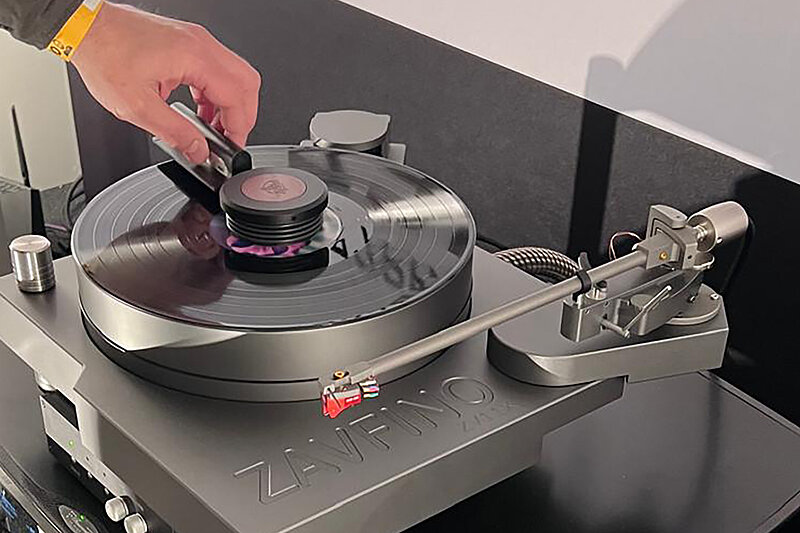

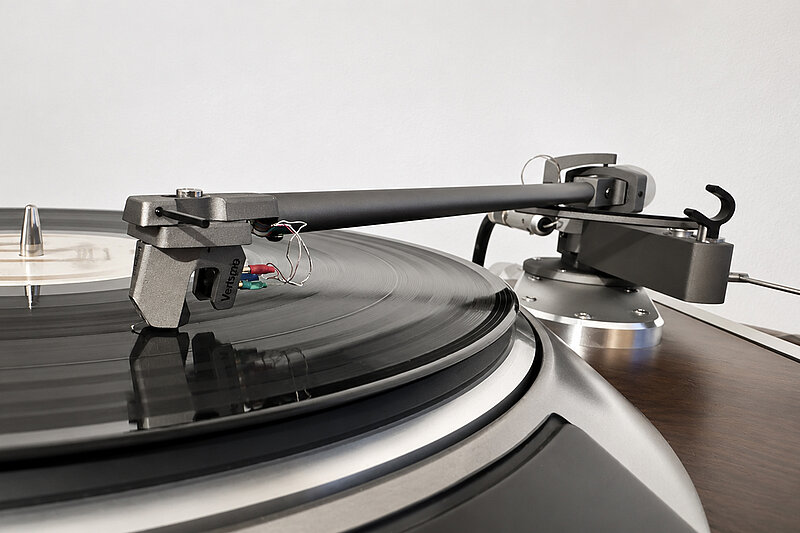

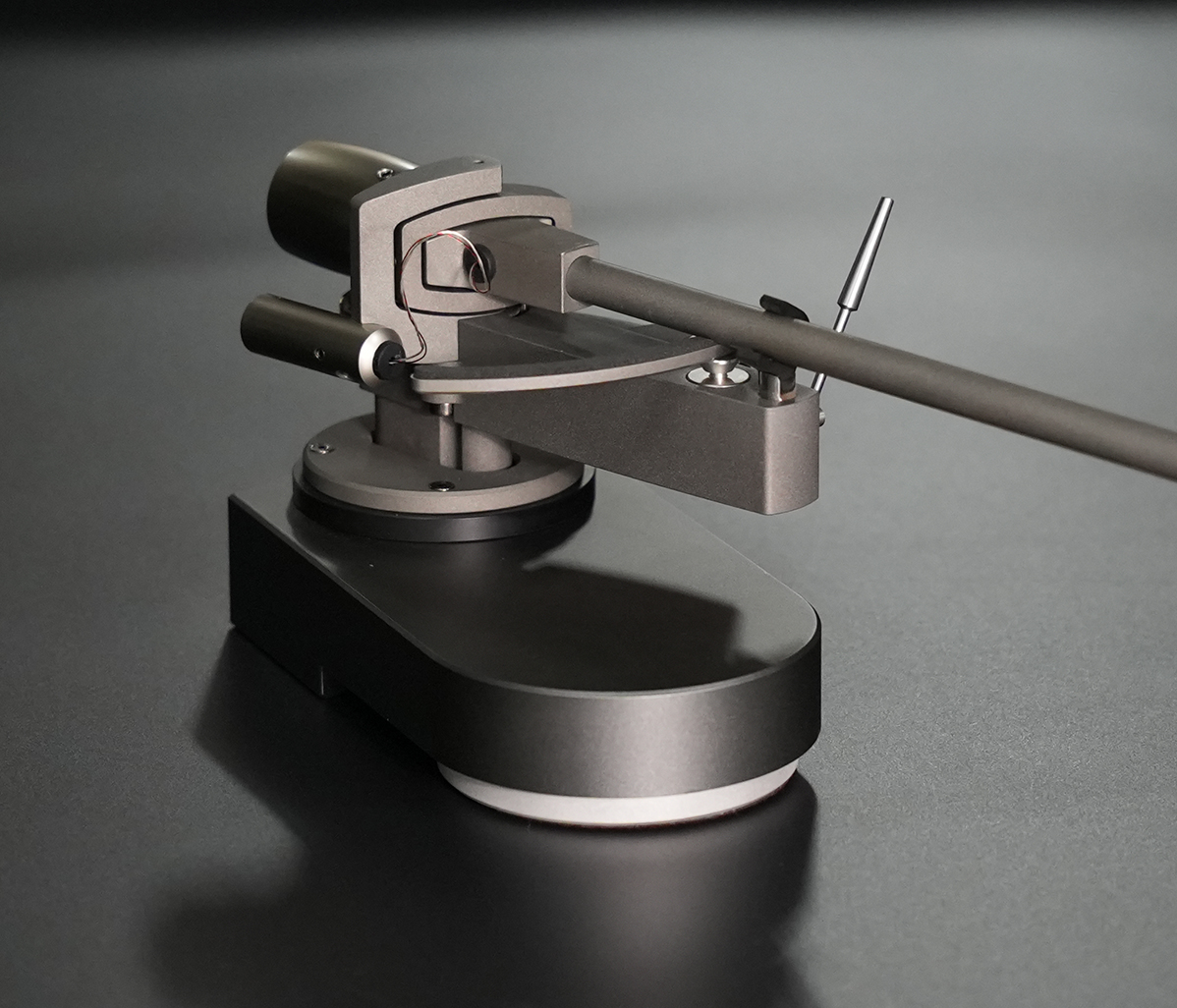

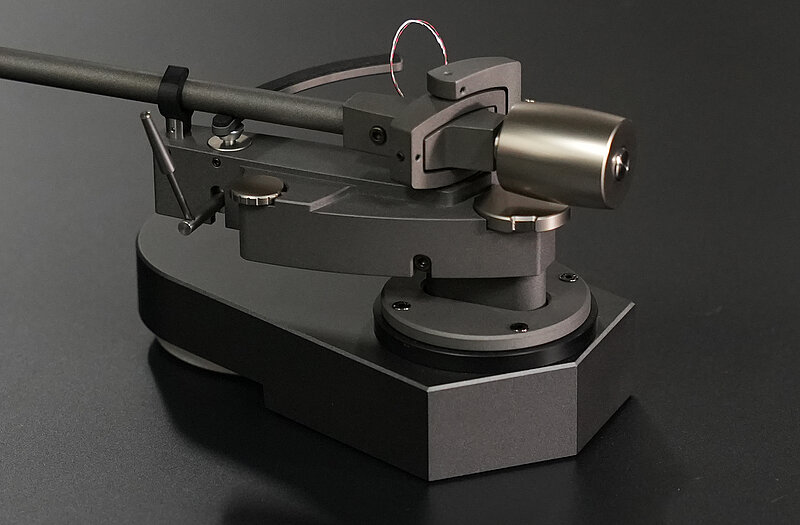

The TZ-1 Crossbow is a 12-inch reference tonearm with an effective length of 304.8 mm. Designed by Helmut Thiele and manufactured by Zavfino 1877Phono, this tonearm was engineered for exceptional smoothness, precise tracking, and reliable adjustability. It is aimed at users seeking a versatile, high-end tonearm system for demanding MM and MC cartridges.
SPECIFICATION
| GENERAL | |
|---|---|
| Effective length | 304,8 mm |
| Overhang | 13,38 mm |
| Offset Angle | 17,85 ° |
| Pivot to spindle | 291,42 mm |
| VTA adjust | 15 mm |
| Null points | 65,9 mm / 120,9 mm |
| Distance from mounting surface to top of platter | Min 30mm + 15adjust |
| Designed by | Helmut Thiele/Built by Zav no 1877Phono |
| DESIGN | |
|---|---|
| Ceramic coated 6061 Aluminum/ Machined Brass, Stainless Steel, POM | |
| Mounting Base: 6061 aluminum with POM socket | |

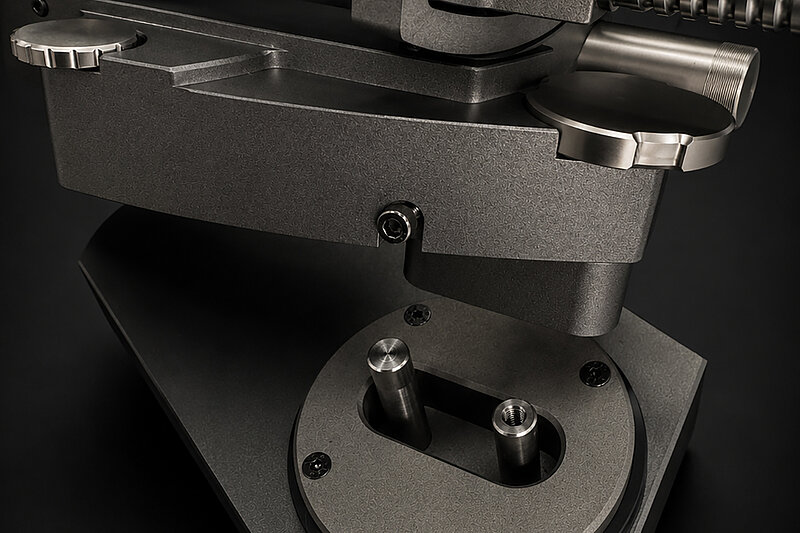

| Fine VTA adjustment dial- Machined Brass, titanium plated | |
| Azimuth Adjustment | |
| Counter weight stud in machined SUS-303 Steel silicone dampened | |
| Counter weight in titanium coated brass with spring loaded guide screw. | |
| Anti-skate in Titanum coated brass external/internal 0.35mm steel rod. | |
| Arm lift Titanium coated brass/stainless steel | |
| Arm tube/headshell 6061 aluminum (ceramic coated) | |
| Bearing-minature high prescision needle bearing | |
| Arm socket in 6061(ceramic coated) with stainless | |
| steel guide shafts | |
| Headshell lift-graphite rod | |
| Damping: Gel fluid, silicone rings | |
| Internal wiring loom- Pure Silver Litz 34AWG |
REVEALING THE FINEST DETAILS
Handcrafted tonearm with selected materials for the perfect sound of your favorite music.
