PRECISION. ISOLATION. CONTROLLED ROTATION.

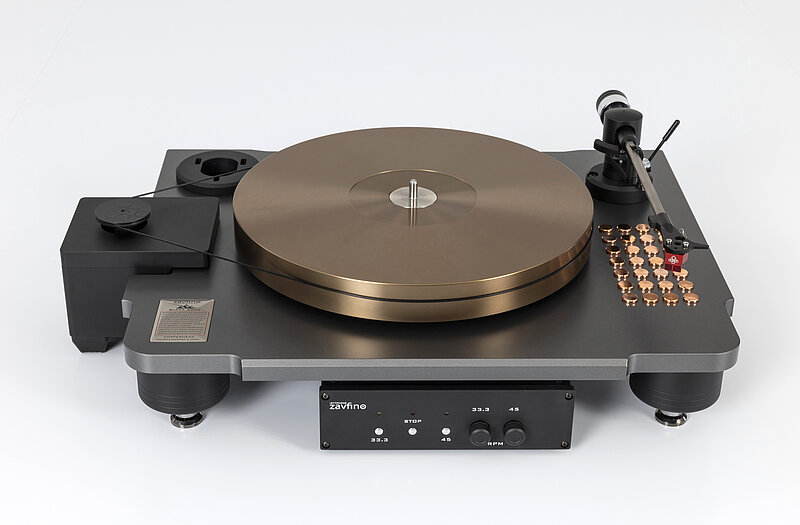

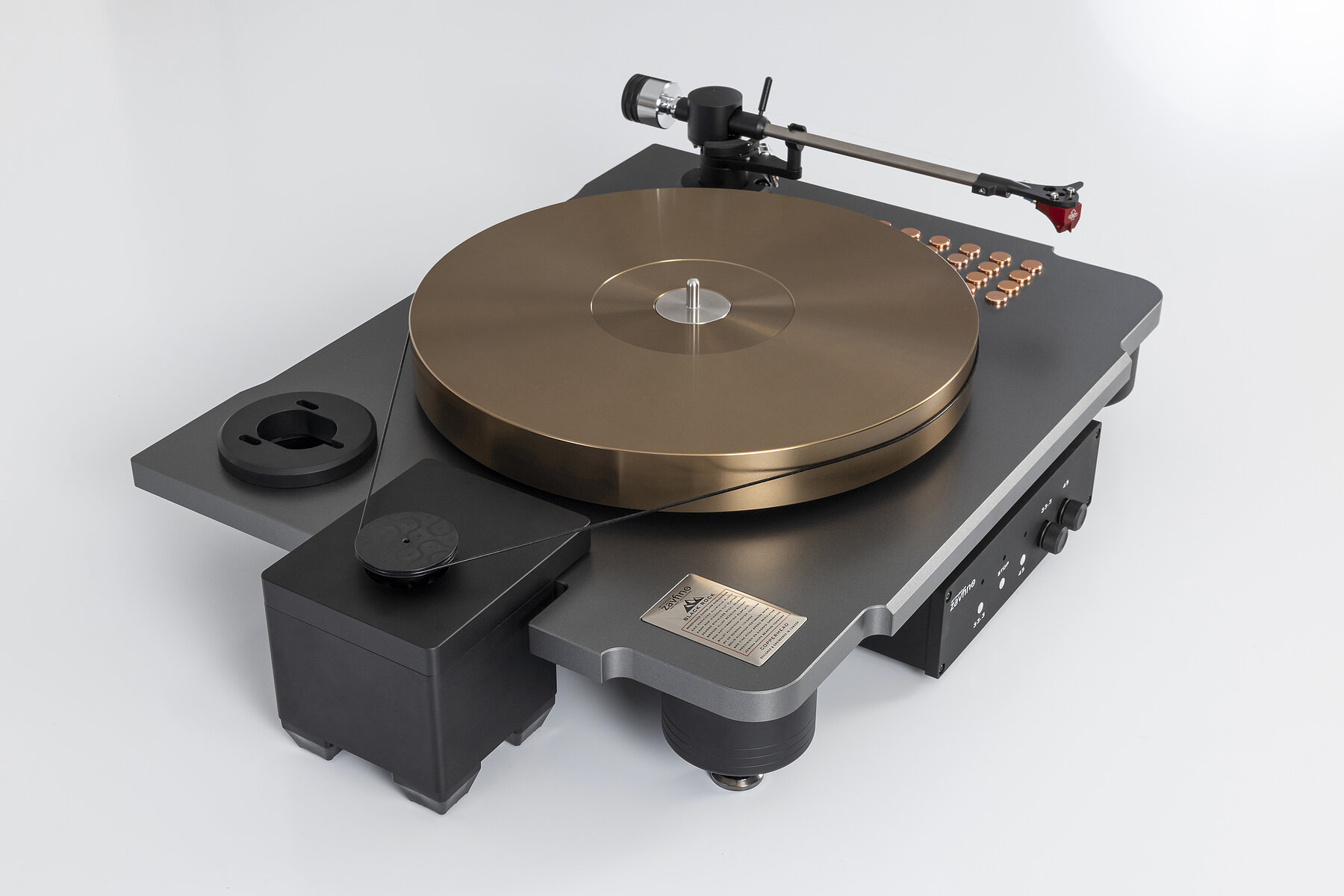

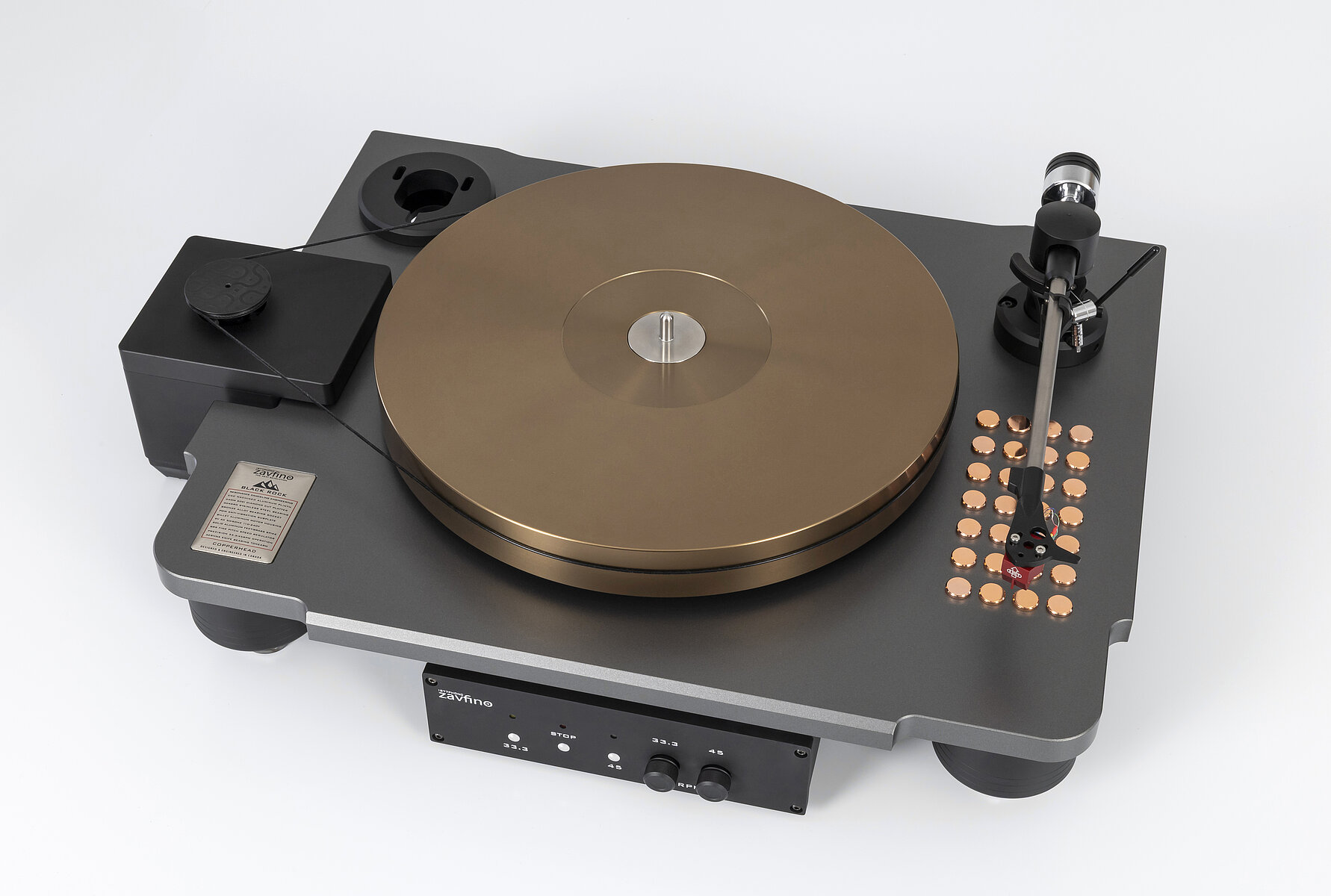

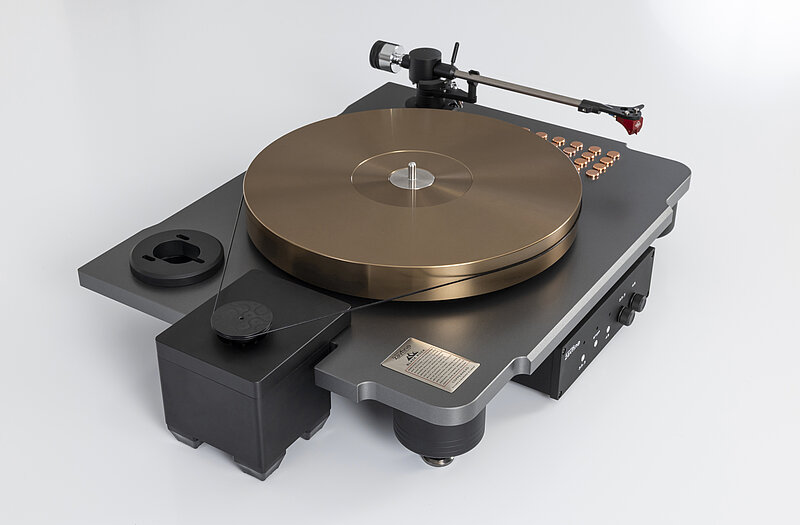

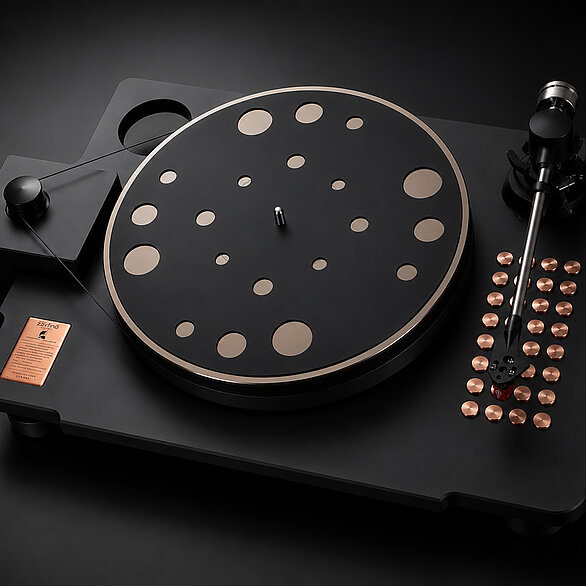

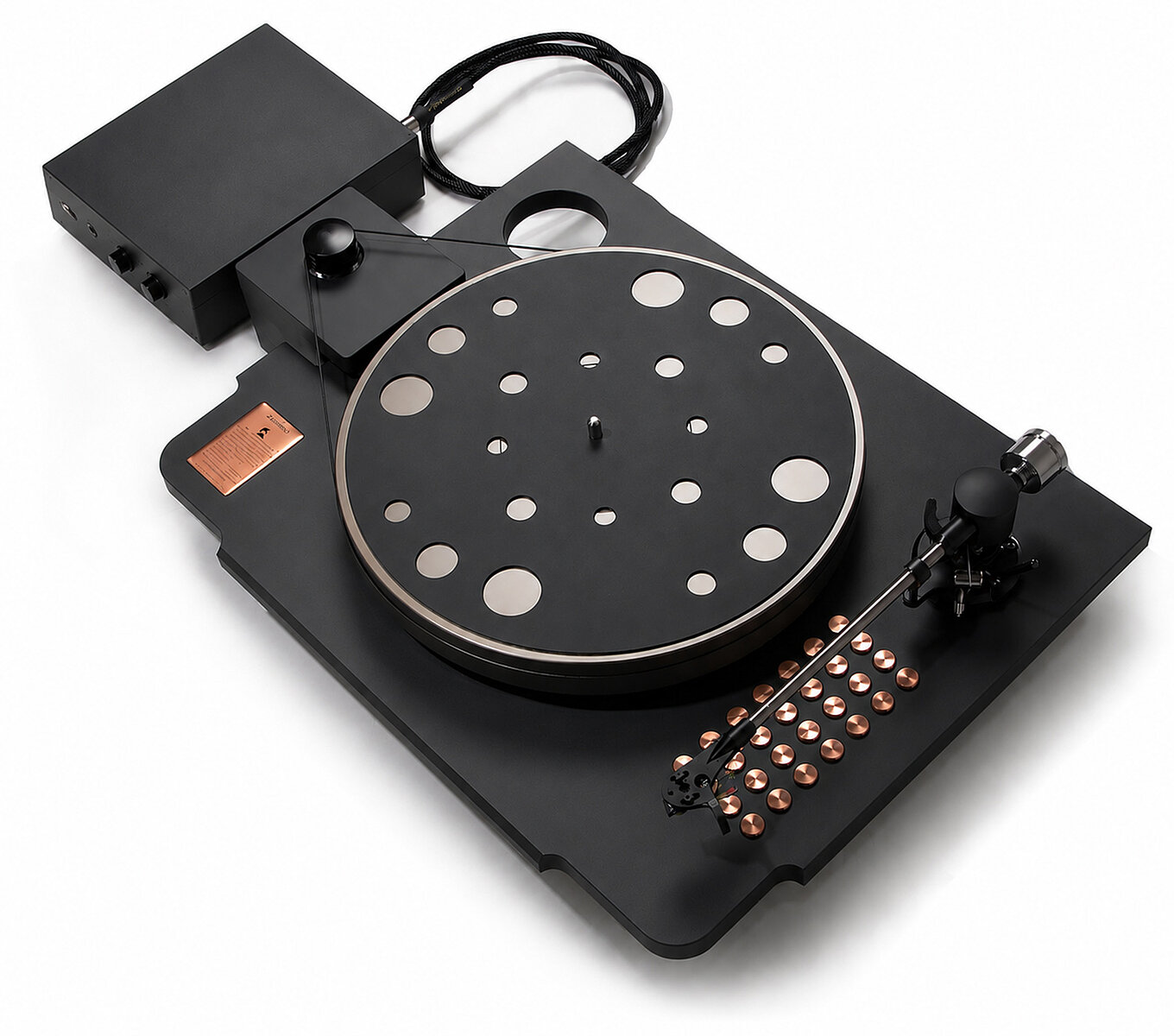

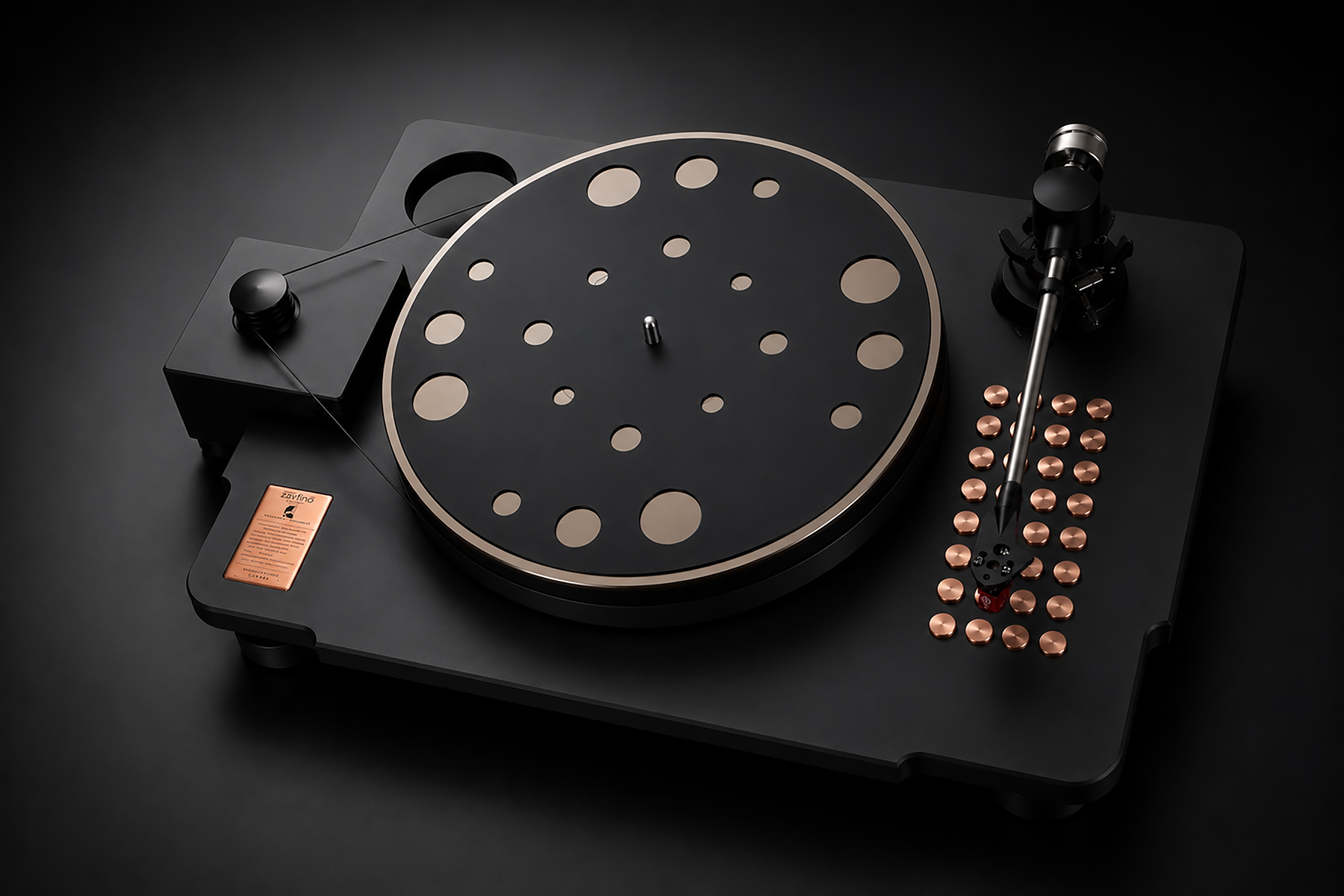

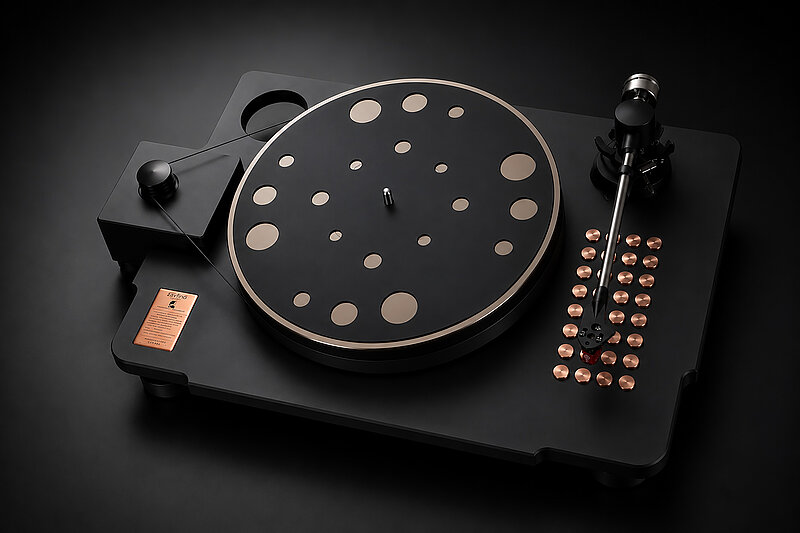

The Copperhead BRS is a high-precision turntable with a CNC-machined 6061 solid aluminium plinth, diamond-cut aluminium platter, fully independent motor housing and external speed regulator. Designed for stable playback and accurate rotational control, it is supplied with the Aeshna 9.5 tonearm and can be configured with an optional second arm socket.

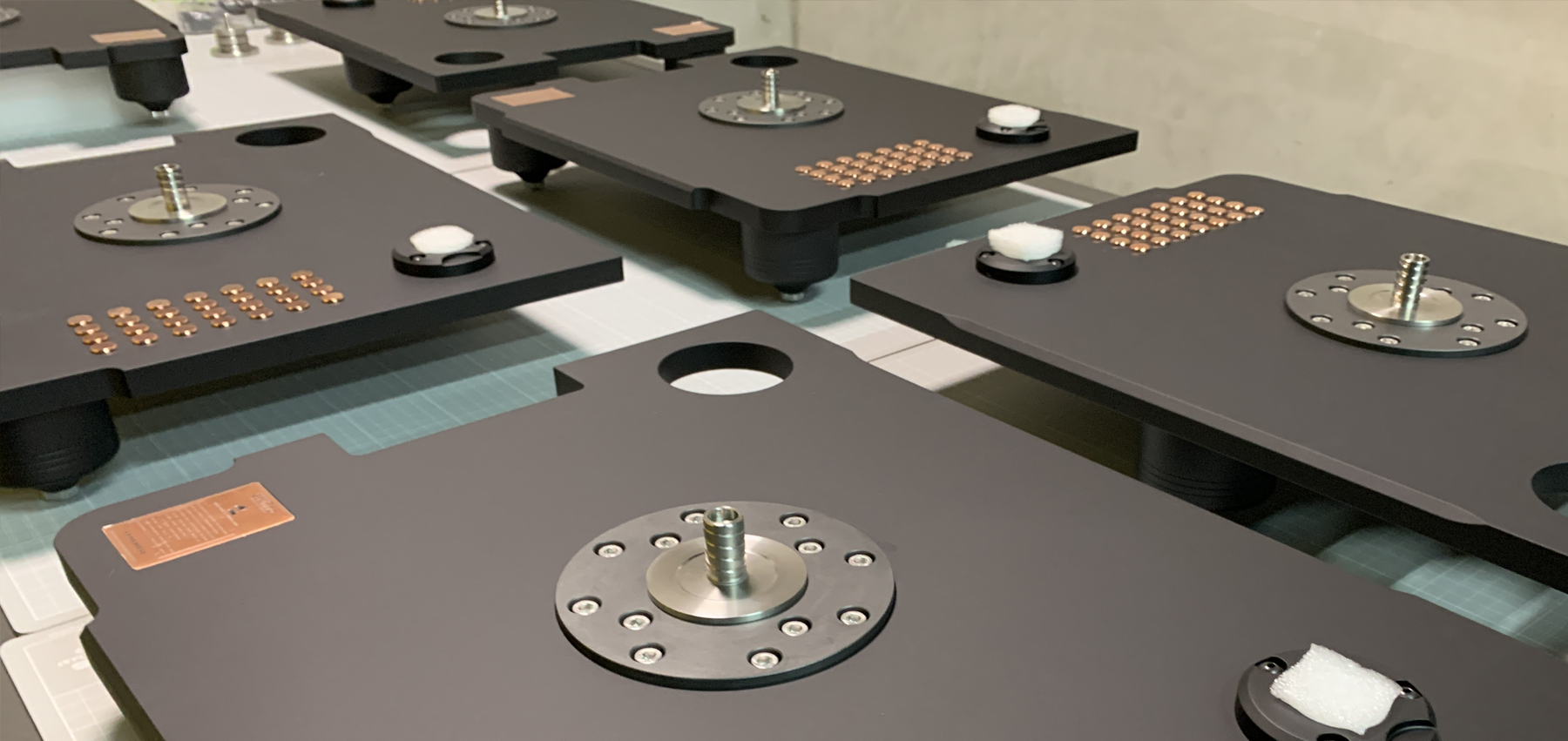

The Copperhead-BRS is designed for precision, stability and controlled analogue playback. Its CNC-machined 6061 solid aluminium plinth uses an acrylic disc sandwich for resonance control, while the solid aluminium platter is diamond-cut on the top side and contoured on the underside to dissipate vibration.

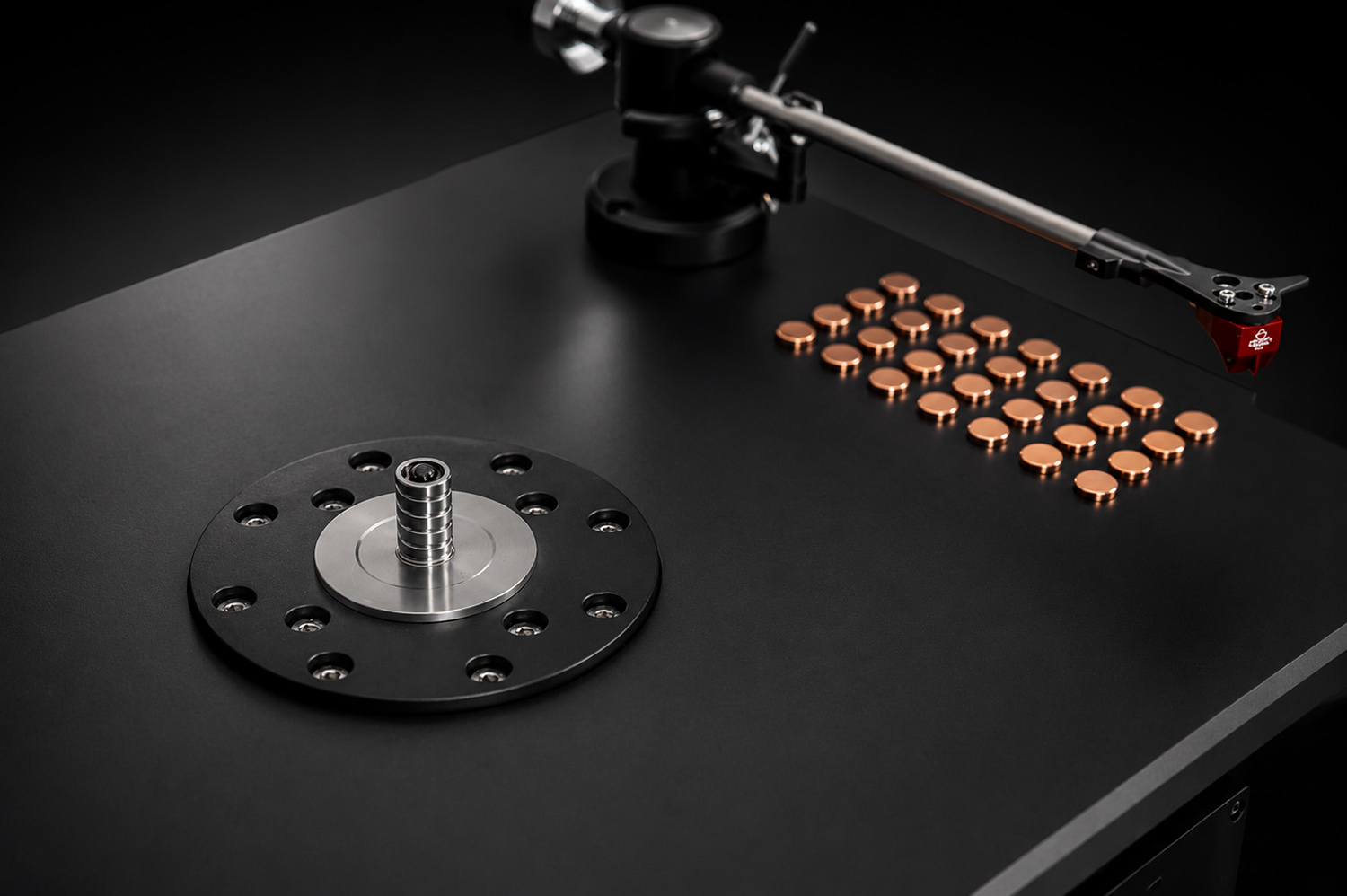

The central bearing is a two-piece solid stainless steel construction with a copper bushing, ceramic ball bearing and Teflon thrust plate. Silicone dampening rings between the bearing and aluminium platter further support resonance control, while the bearing itself sits in a 20 mm acrylic anti-vibration disc to isolate it from the plinth.

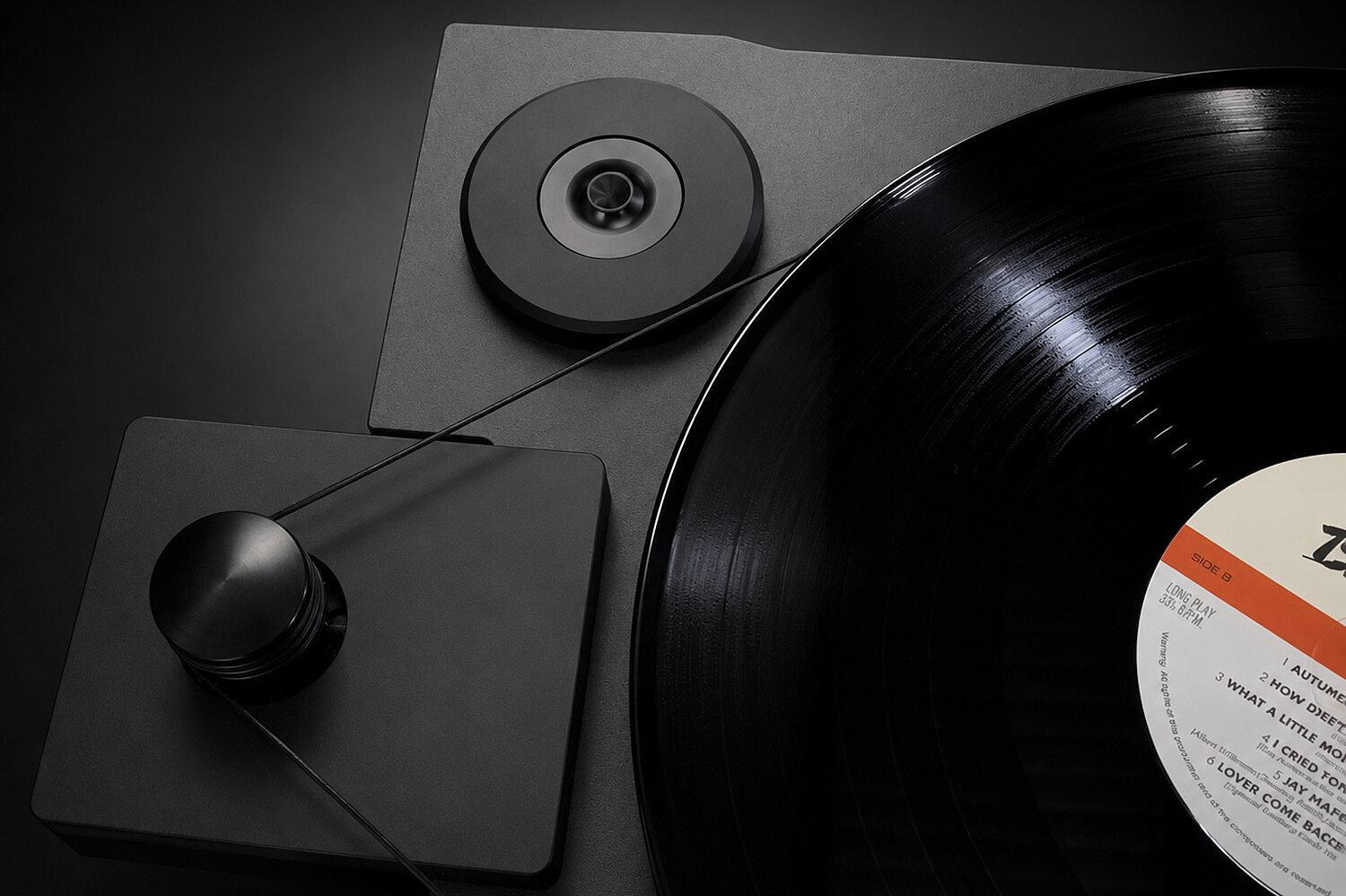

The Copperhead BRS comes standard with a fully independent motor supply in a 1.8 kg block aluminium housing. The motor is regulated by an a new and improved German designed AC regenerating circuit, allowing fine adjustment/pitch control for an accurate and stable 33.3 rpm and 45 rpm operation. The separate motor housing is machined from a solid block of aluminium and dampened with a silicone gel and utilizes a 9V low-torque motor with a custom POM machined pulley.

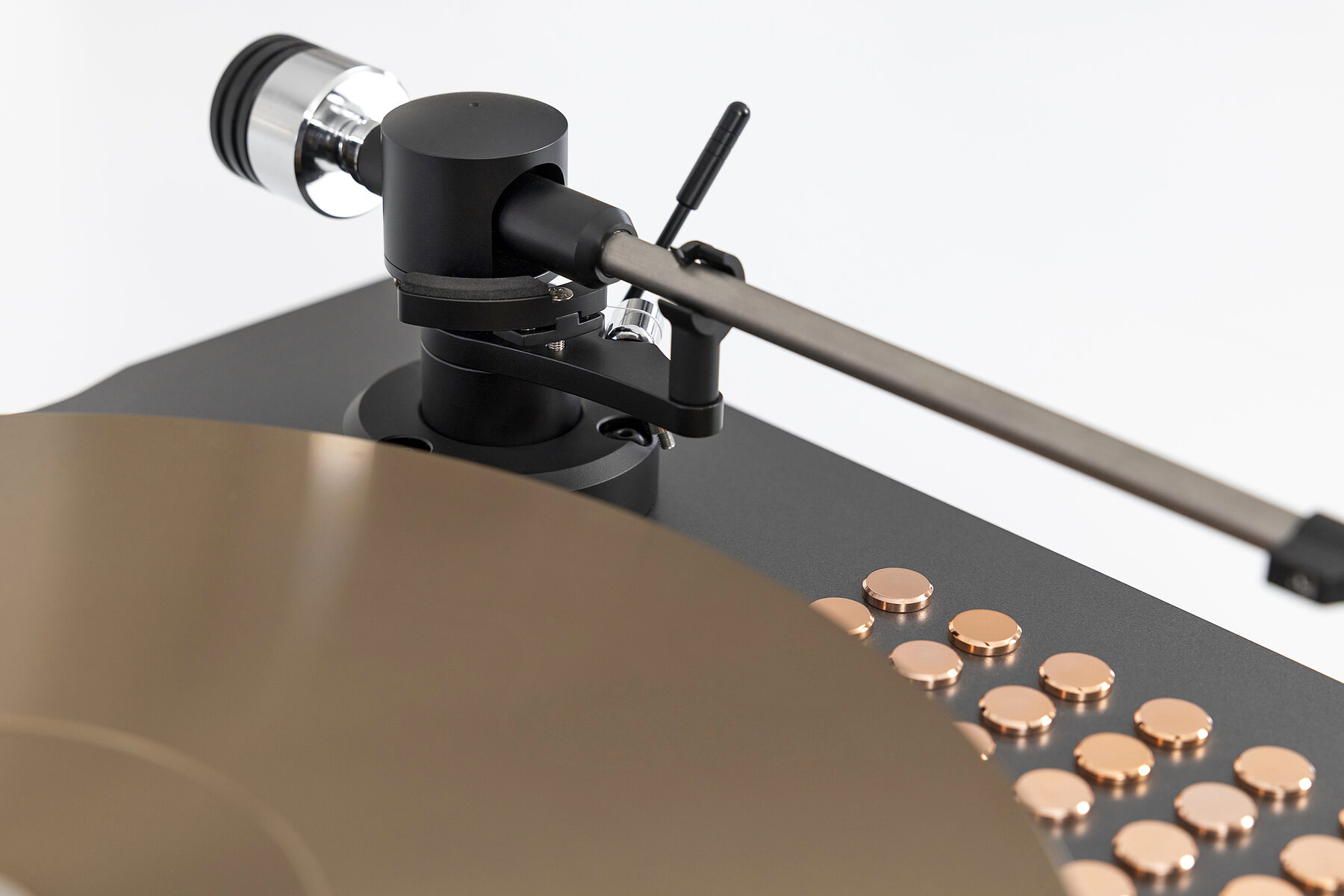

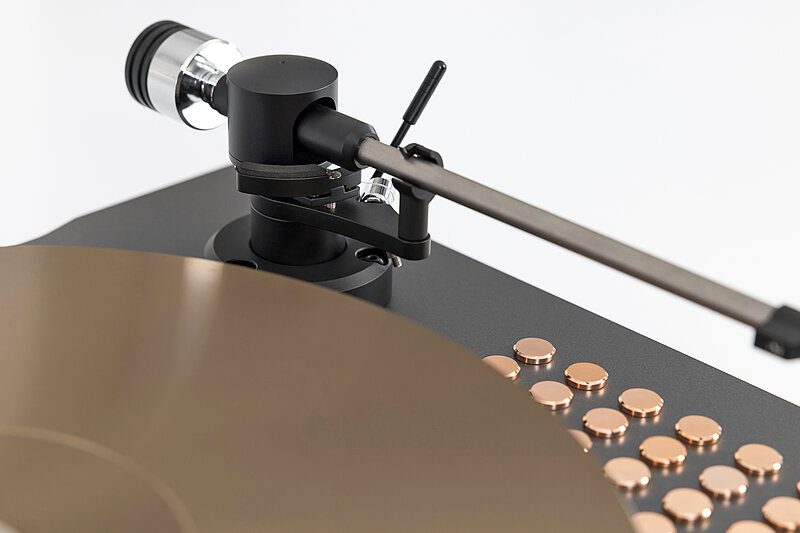

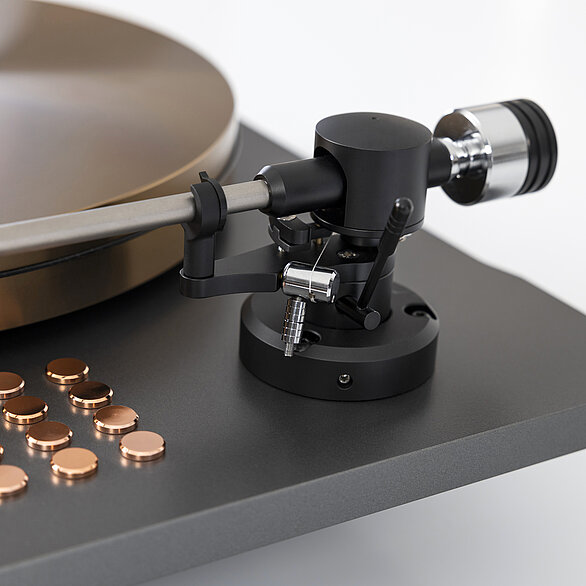

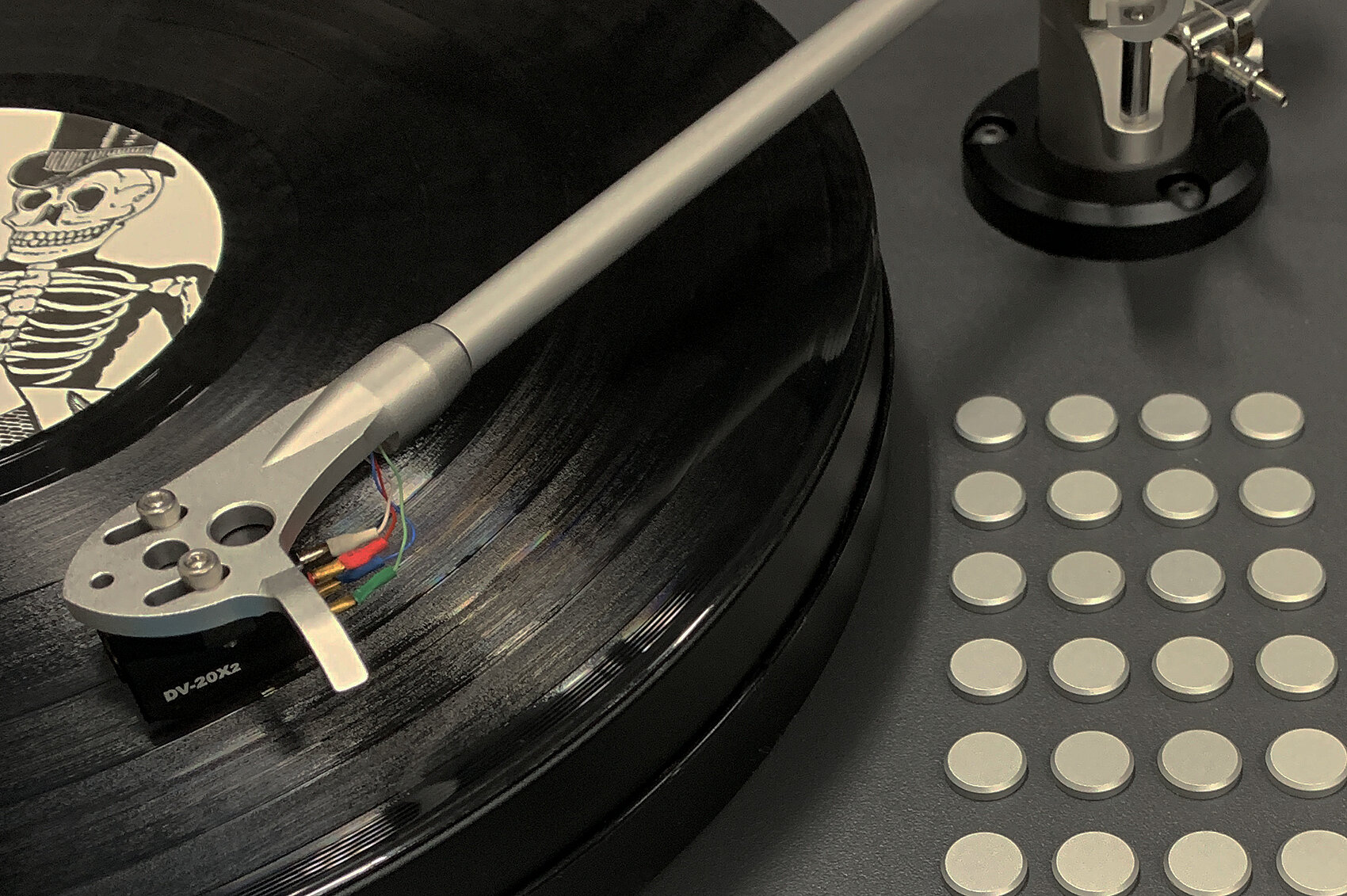

Also standard is the Aeshna 9.5 tonearm. Designed for accurate tracking and flexible cartridge matching, the Aeshna 9.5 uses ceramic ball race horizontal bearing technology, a steel knife vertical bearing and selectable arm wand options in carbon fibre or aluminium for the Copperhead-X configuration.

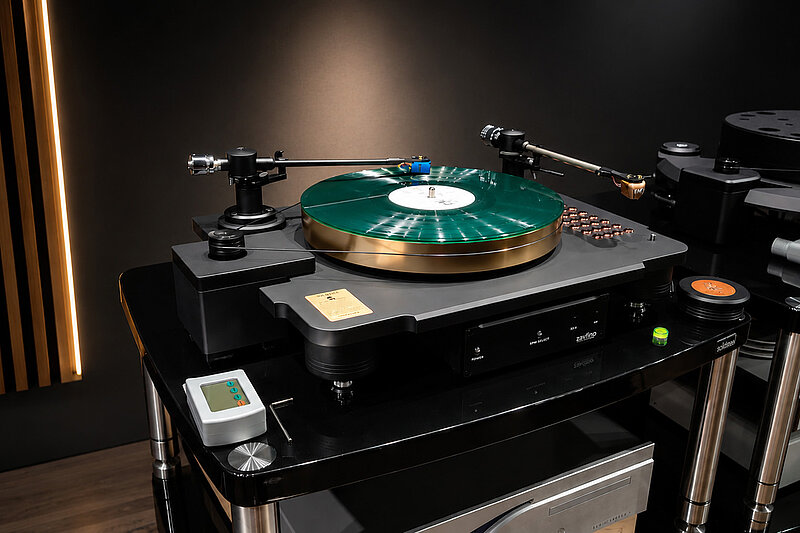

The Copperhead BRS can also be fitted with a second optional arm socket for other manufacturers’ tonearms up to 10.5 inches.

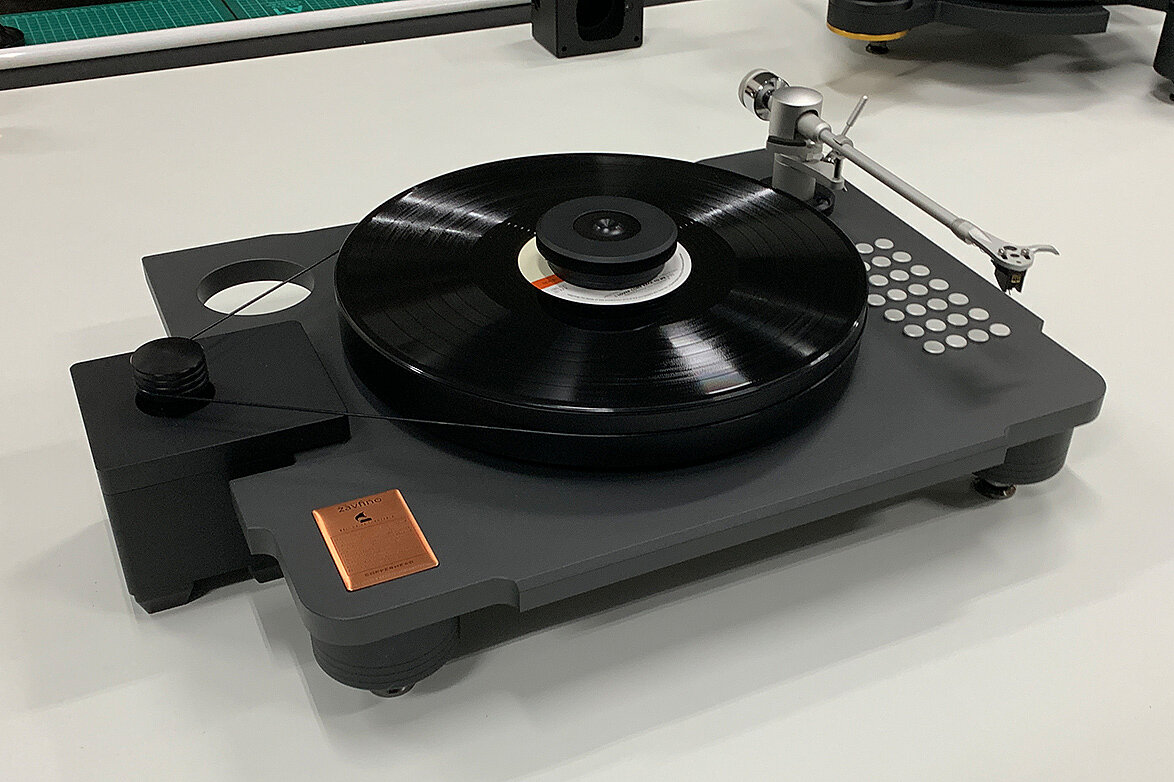

The Copperhead BRS is available in Anodized Black/Bronze and Power Coat Charcoal/Black, Metallic Charcoal and custom paint through the dealer
FEATURES & HIGHLIGHTS
Diamond cut aluminium platter:
6061 machined aluminium platter, diamond-cut on the top side and contoured on the underside to dissipate vibration.
Bearing System
Two-piece solid stainless steel bearing with copper bushing, ceramic ball bearing, Teflon thrust plate and silicone dampening rings.
Motor Housing:
Fully independent motor housing machined from a solid block of aluminium, using a 16V low-torque motor with Delrin pulley.

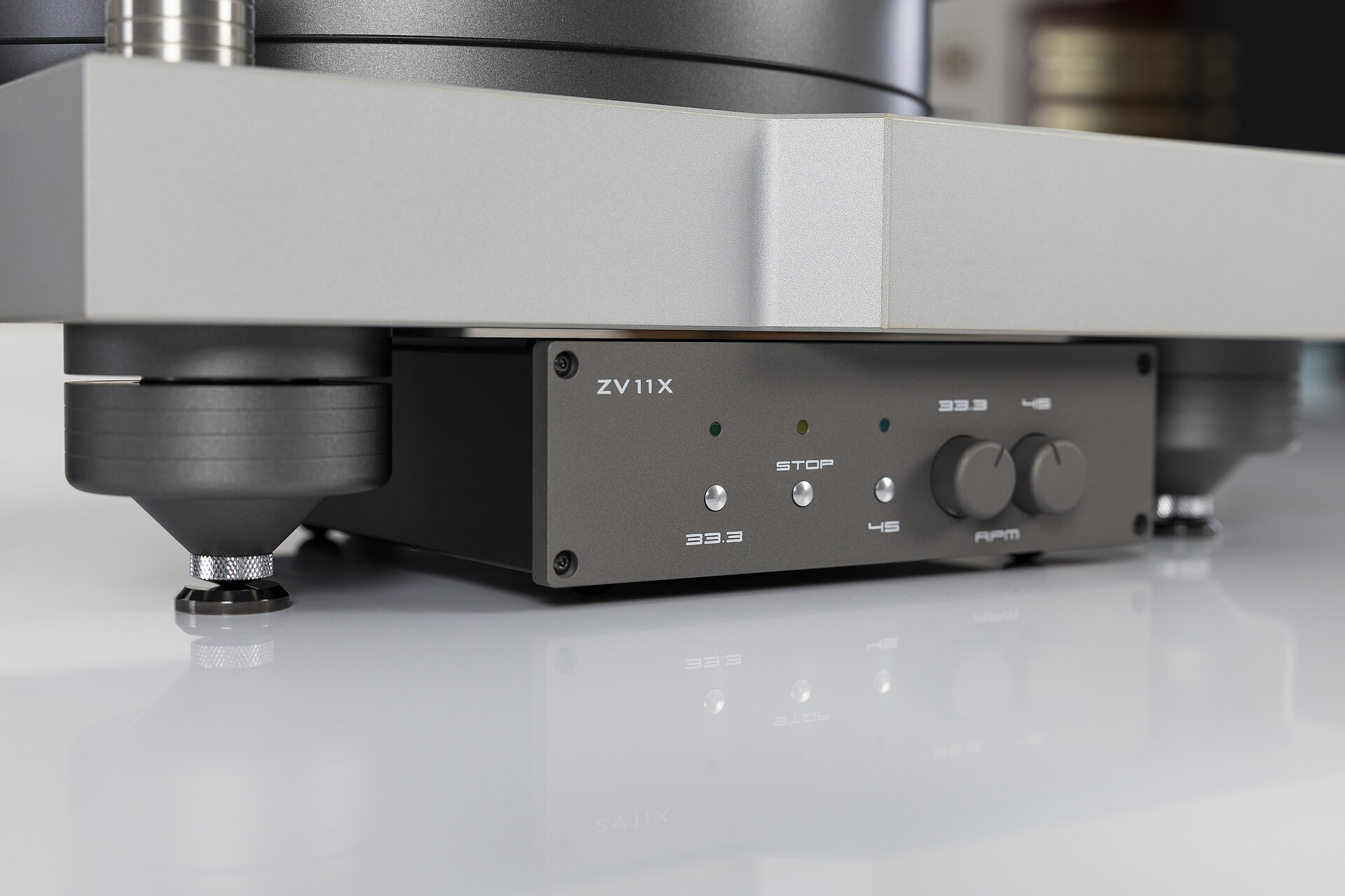

Speed control:
External speed regulator with AC regenerating circuit, fine pitch adjustment and 33.3 rpm / 45 rpm operation.
Wiring:
High-purity internal wiring for maximum signal integrity.
Tonearm:
Supplied with the Aeshna 9.5 tonearm, available with carbon fibre or aluminium arm wand options for the Copperhead-X configuration.
Second Arm Option
Optional second arm socket available for other manufacturers’ tonearms up to 10.5 inches.
Refined finish options:
Colour: Satin Black with antique bronze anodized aluminum platter, or optional satin black or satin silver platter.
COPPERHEAD BRS SERIES
GENERAL SPECIFICATION

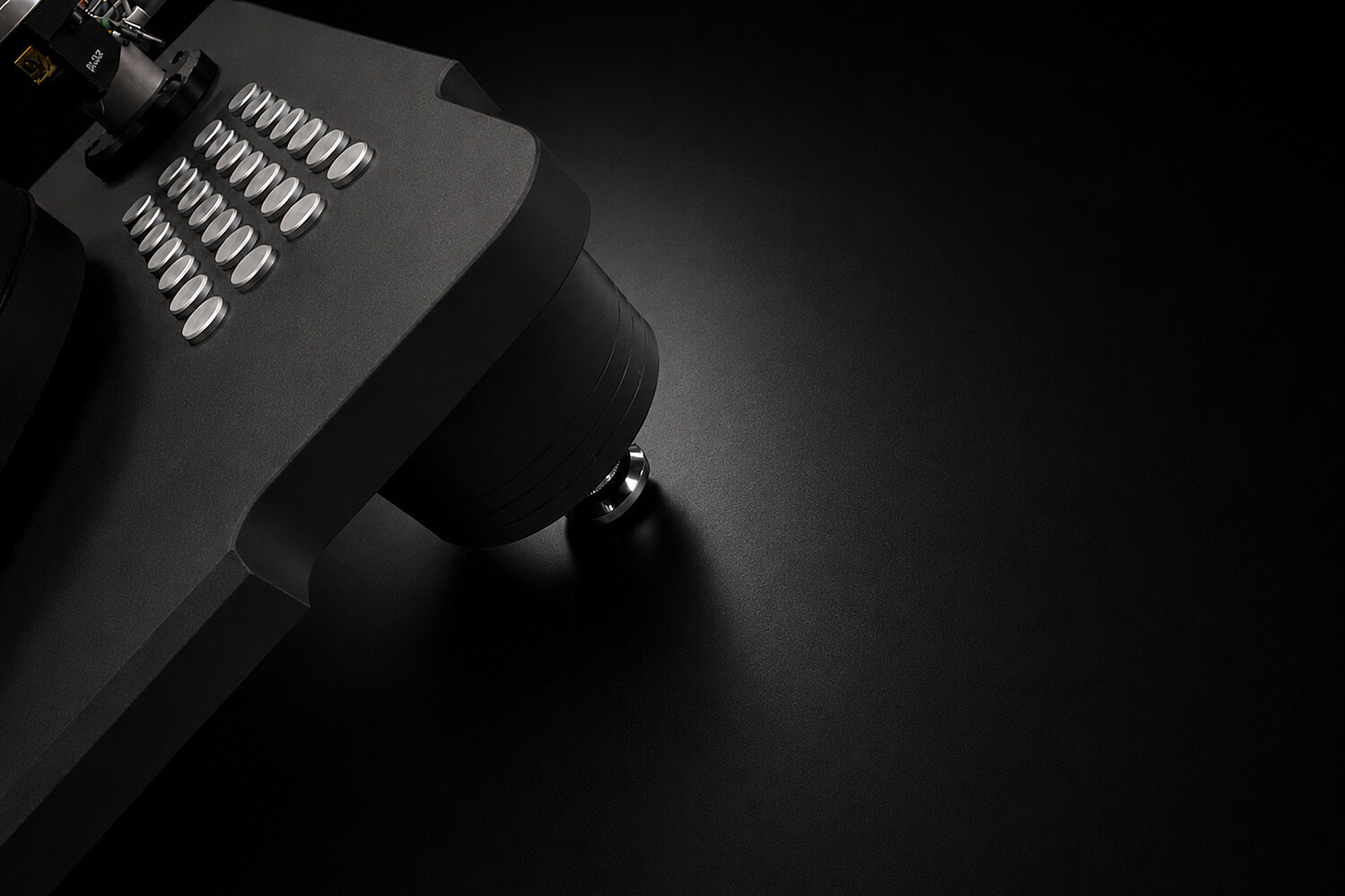

| Plinth | Material: CNC machined 6061 solid aluminium Thickness: 16.20 mm Dimensions: L480 / W380 / H60, H-Rack to bottom of plinth Finish: Fine sandblast / anodized satin black Resonance control 1: Acrylic disc sandwich, 5.0 mm Foot: Solid 6061 aluminium with copper-plated adjustable spike Weight: 14.8 kg without platter |
|---|---|
| Platter | Material: 6061 machined aluminium with contoured underside Thickness: 35 mm machined / contoured Diameter: 298 mm Bearing cap: Stainless steel JIS standard-bronze insert Teflon thrust plate Bearing shaft: Stainless steel with oil reservoir cup Weight: 5.5 kg |
| Motor & Housing | Material: CNC machined 6061 solid aluminium block Dimensions: L100 / W90 / H100 mm Finish: Fine sandblast / anodized satin black 16V / low torque 50/60 Hz with Delrin pulley Foot: Industrial grade rubber, non-marking AC power cable: Shielded / detachable Belt: Industrial grade silicone Weight: 2.0 kg |
| Speed Regulator | 33.3 rpm / 45 rpm Fine pitch control adjustment 100–240 V, 50/60 Hz universal power supply Material: Aluminium 6061 Finish: Fine sandblast-anodized satin black Dimensions: L180 / D200 / H65 mm Foot: Rubber, non-marking Weight: 2.0 kg |
| Tonearm | Included tonearm: Aeshna 9.5 Arm wand options for Copperhead-X configuration: Carbon fibre or aluminium Effective design length: 9.5" / 238.4 mm Bearing: Horizontal ceramic ball race / vertical steel knife Cartridge range: 6–16 g Internal wire options: 34 AWG Pure Silver Litz or 34 AWG OCC Copper Litz Second optional arm socket for other manufacturers’ arms up to 10.5 inches |
| Colours | Anodized Black/Bronze Power Coat Charcoal/Black |
