PRECISE AND UNIVERSALLY APPLICABLE

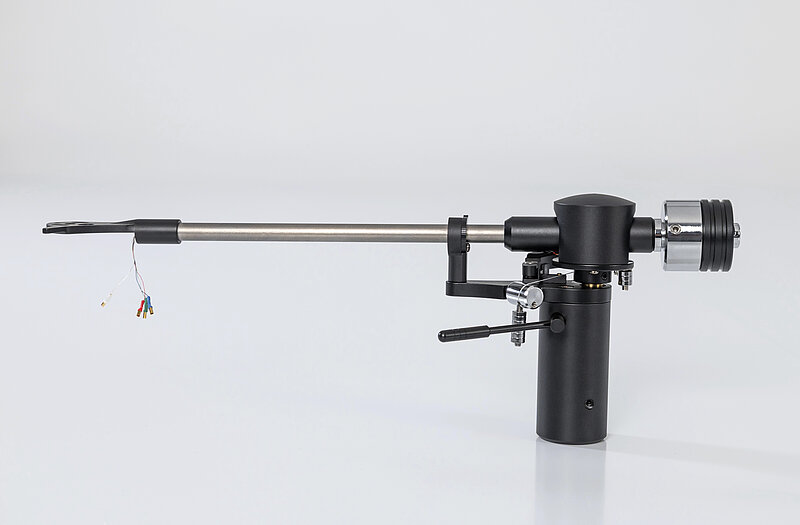

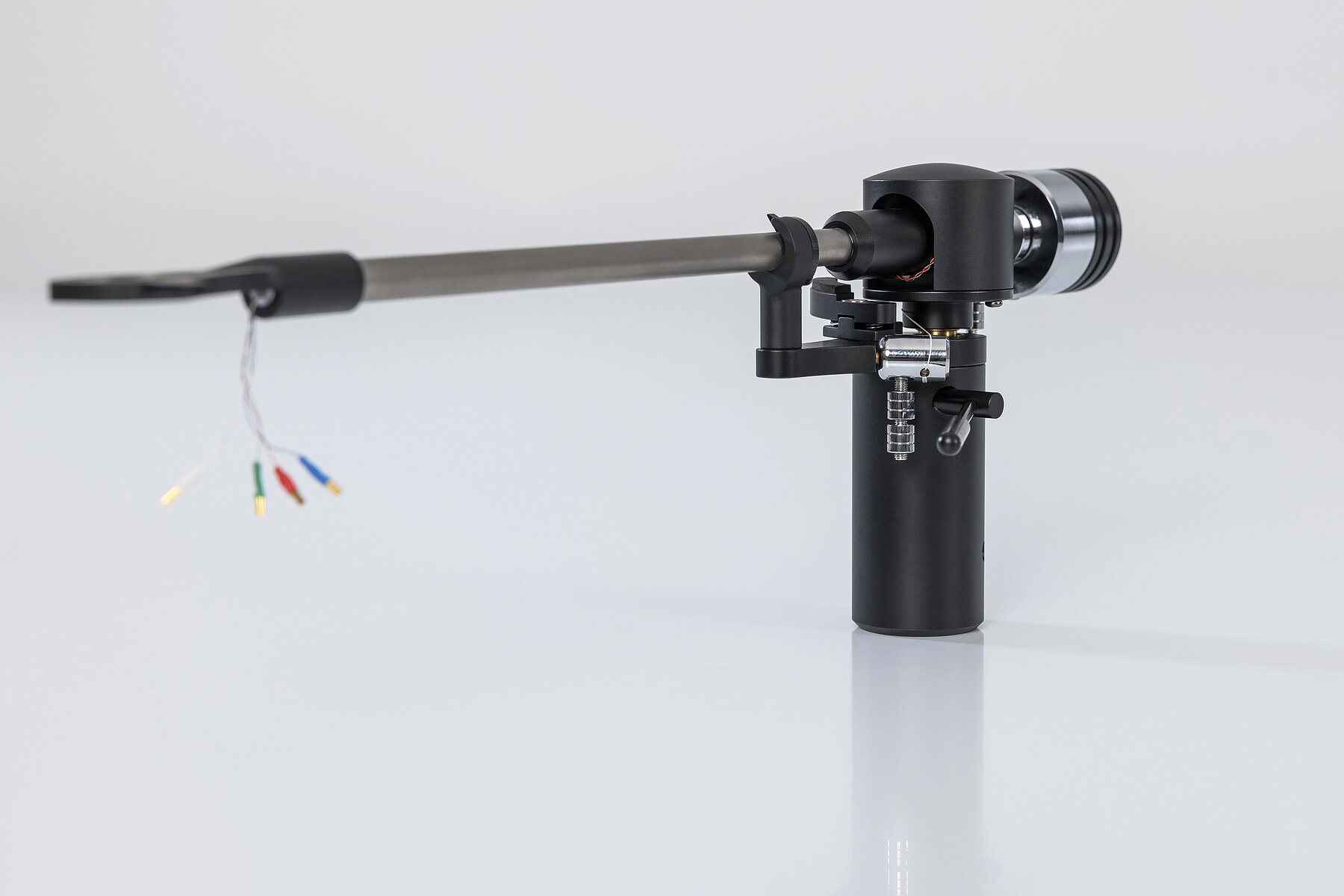

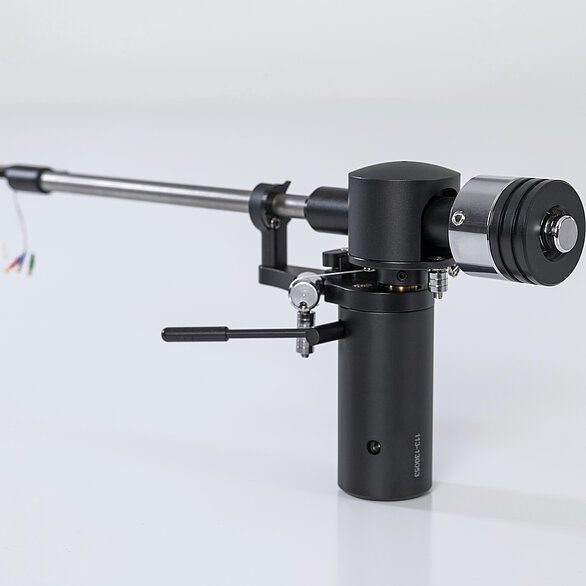

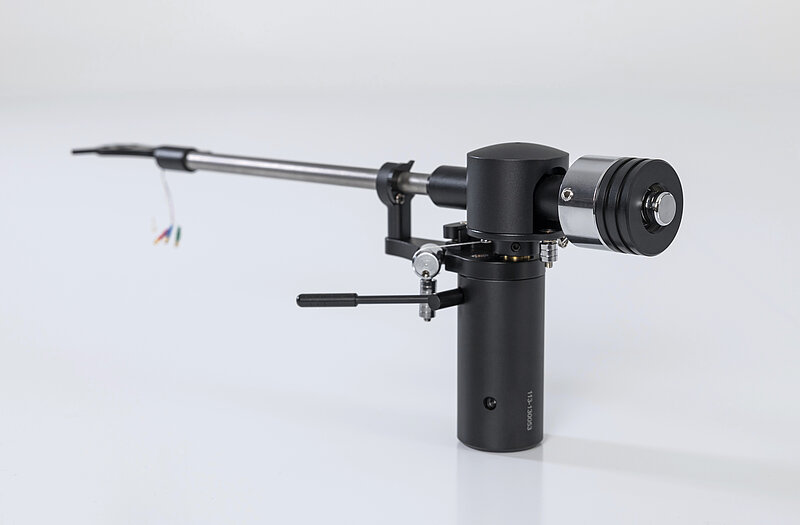

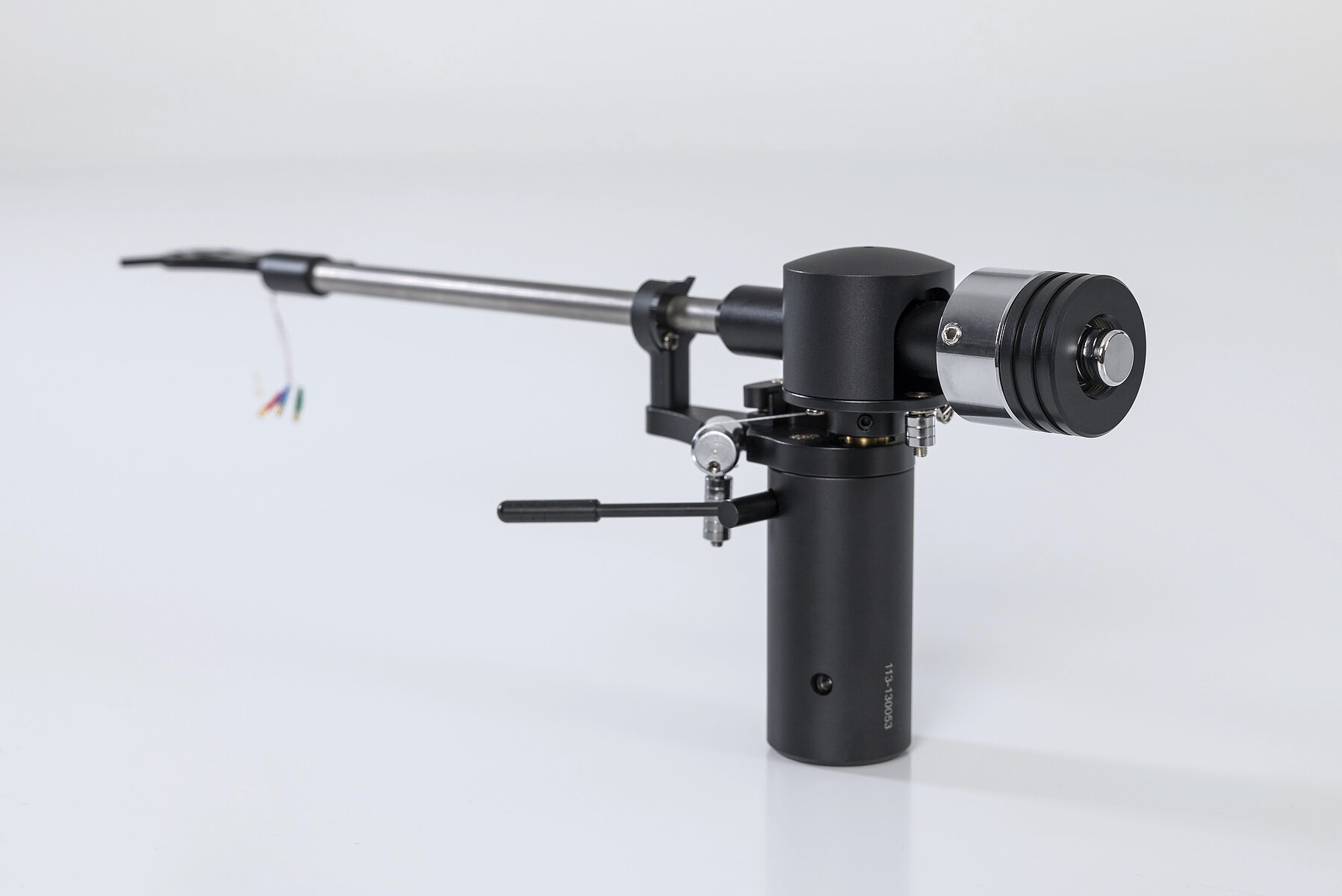

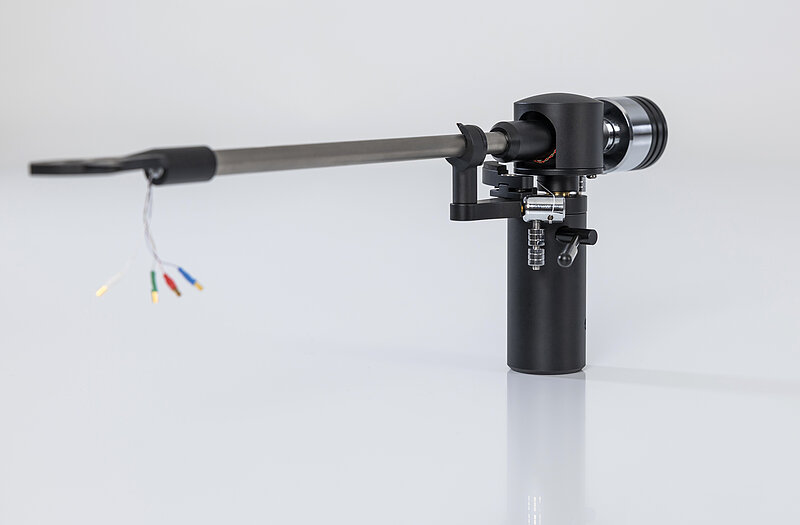

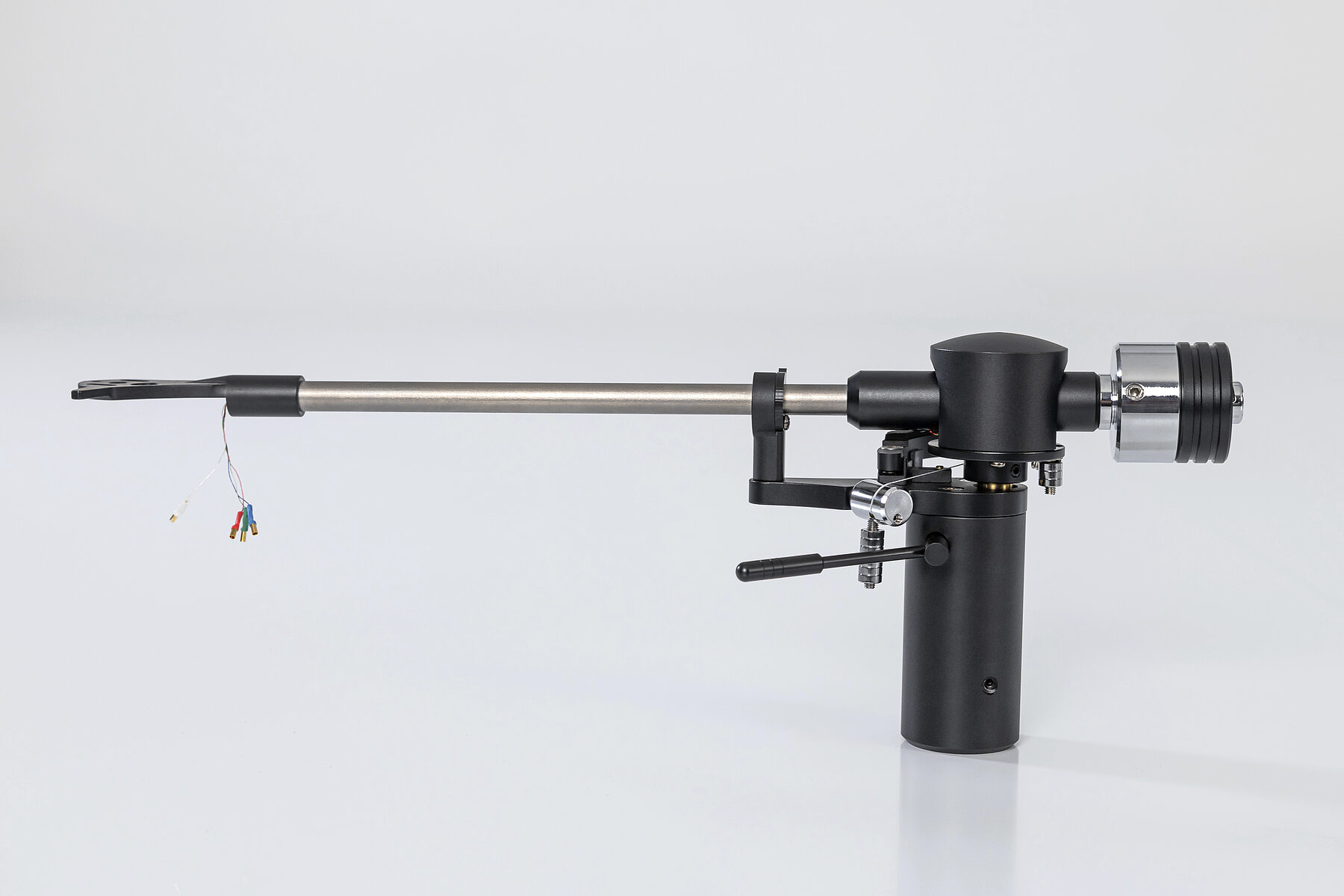

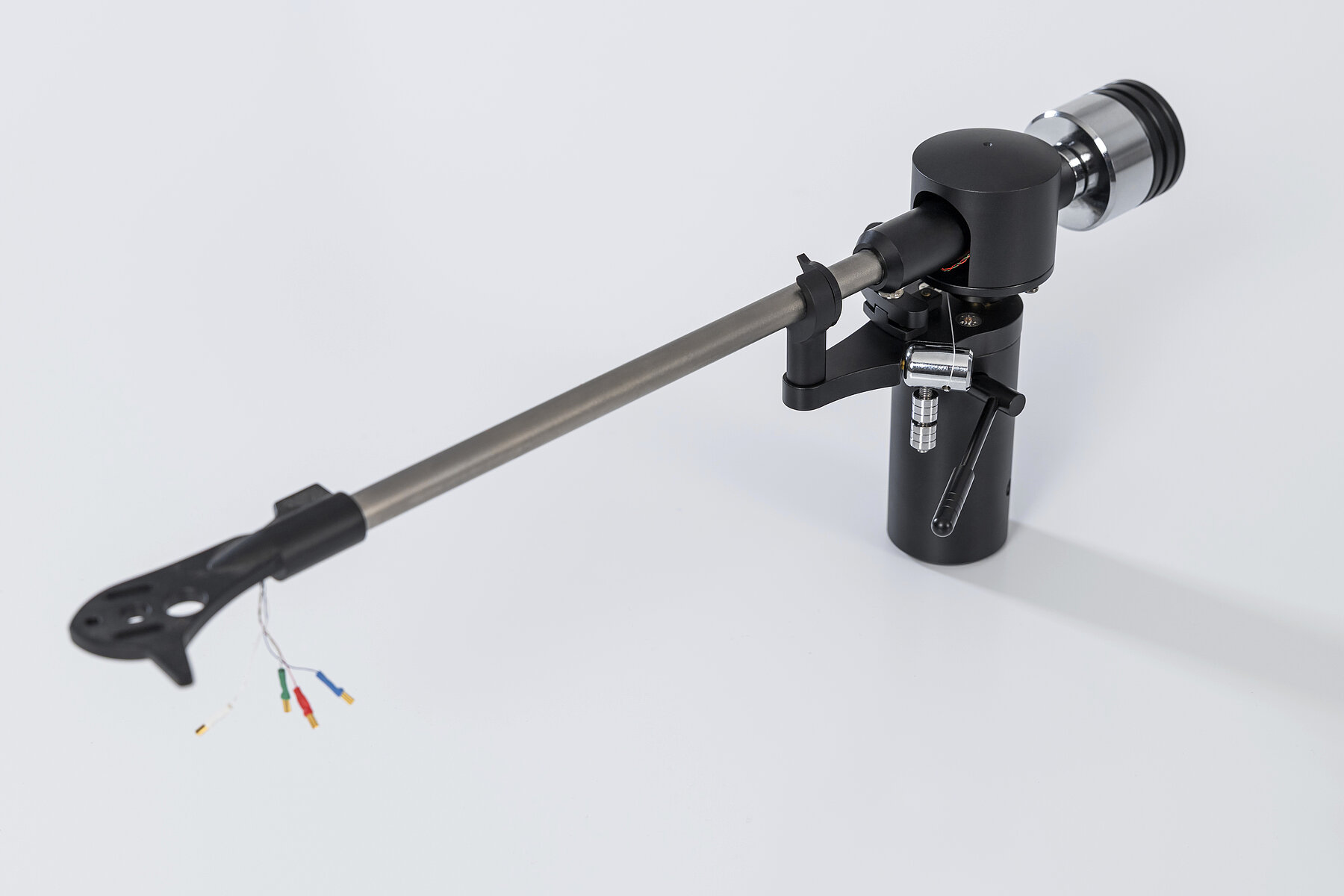

The Zavfino Aeshna is a high-precision 9.5-inch tonearm (238.4 mm effective length) designed without compromise for accurate tracking and flexibility. Thanks to innovative bearing technology and variable arm tube options, it is suitable for a wide range of cartridges and sets new standards in its class.

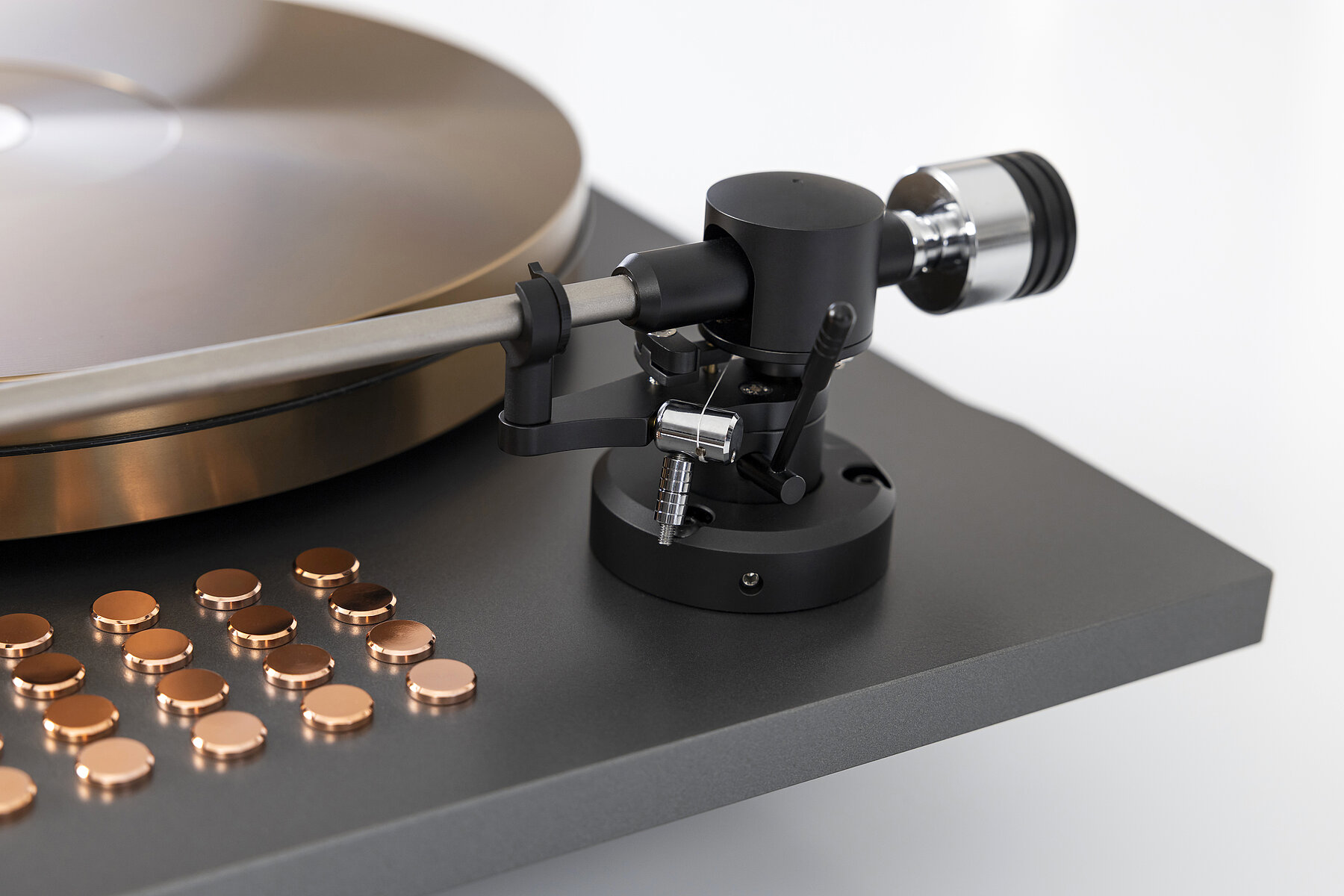

Our Aeshna Tonearms come standard on all of our tables and are 100% manufactured, wired, assembled and tested in‐house by our own technicians. Although we would like to take full credit for its complete design, we actually sought out and joint ventured with a UK based tonearm designer/engineer/legend having over 25 years of designing and manufacturing cutting‐edge tonearms; with fhis “the right way, or hit the highway” approach. The outcome is an amazing arm that we can proudly pair with our components.

GENERAL SPECIFICATION

Effective design length 9.5" / 238,4 mm
Bearing Horizontal: Ceramic ball race
  Vertical: Steel knife
Bearing thickness 16,2 mm
Friction Lateral: < 0,007
  Vertical < 0,001
Arm composition Machined aluminum shaft
  Machined aluminum platform
  Brass anti-skate
  Brass counterweight stud

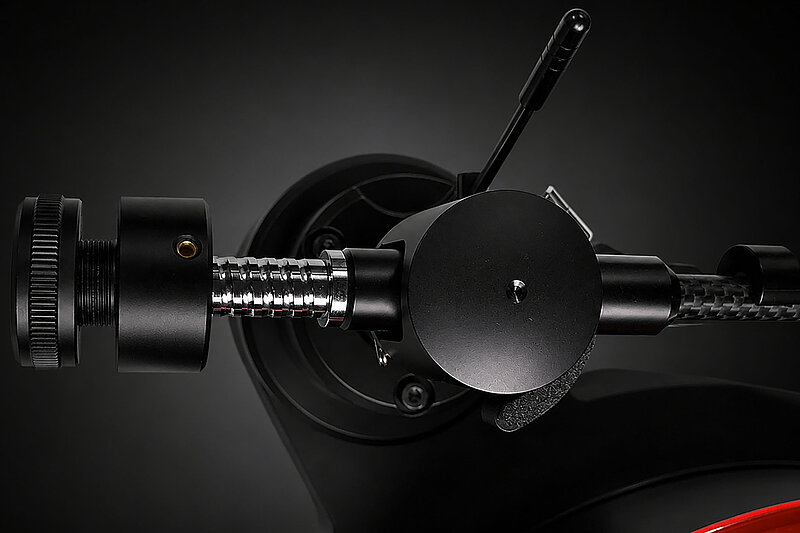

  Brass counterweight

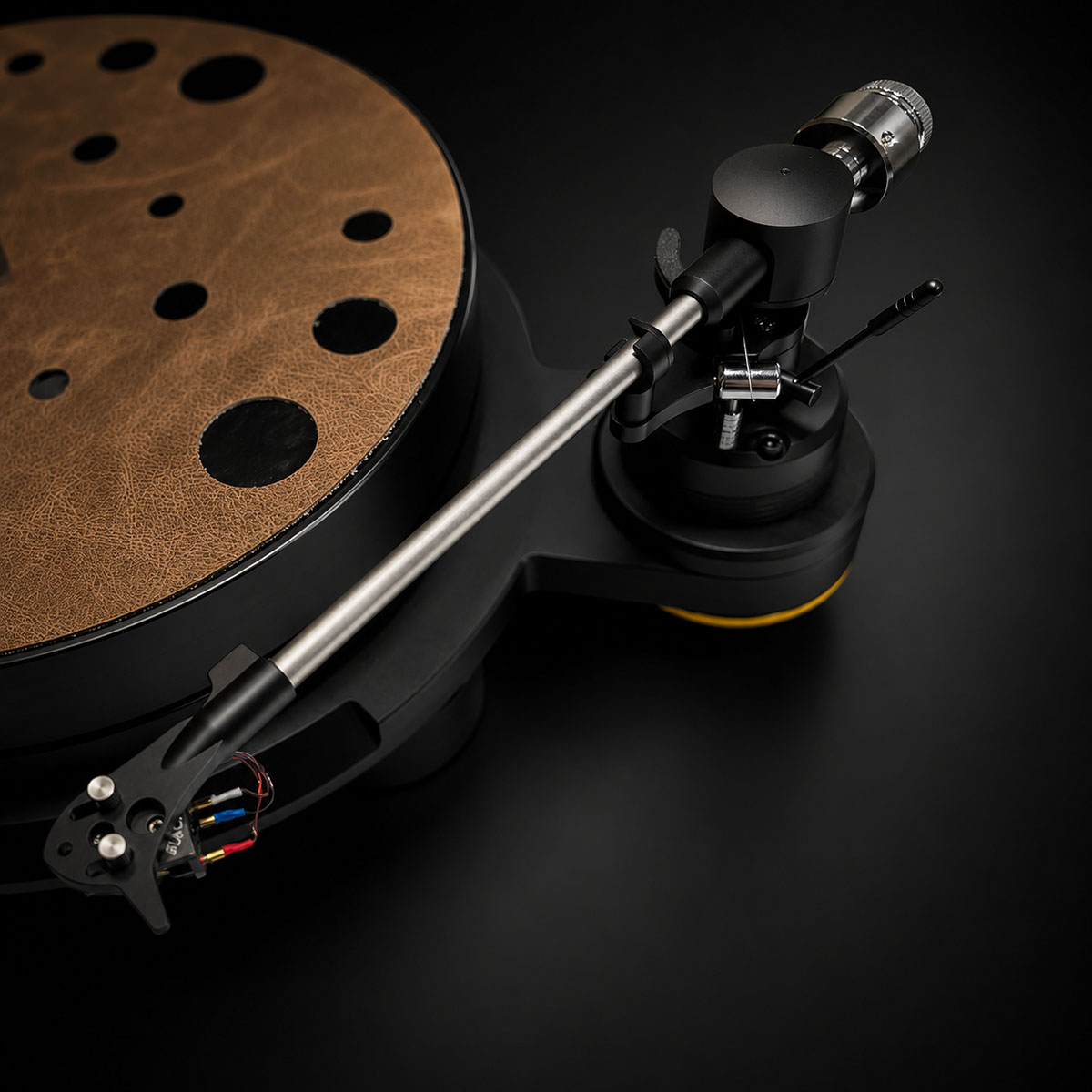

Arm wand options Titan (adjustable headshell)

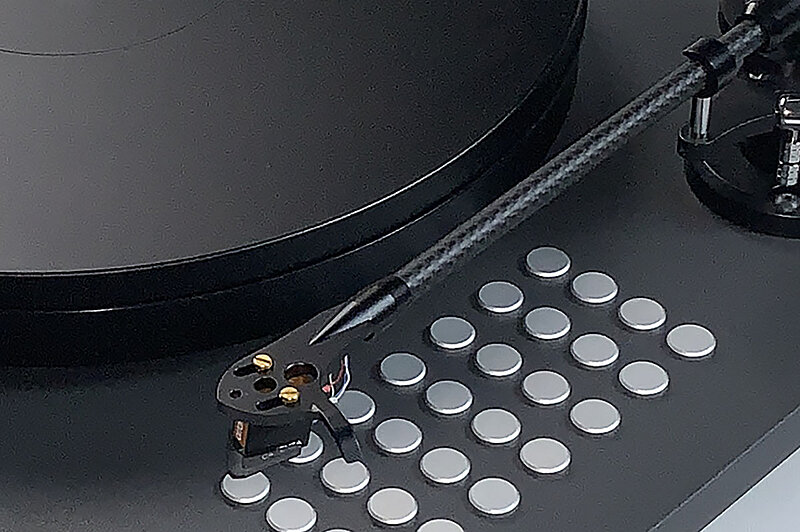

  Carbon Fibre (fixed headshell)
  Aluminium (fixed headshell)
Effictive mass Titan 11,8 g / Carbon 10,8 g / Aluminium 8,0 g
Cartridge range 6–16 g
Internal wire options 34 AWG Pure Silver Litz or 34 AWG OCC Copper Litz

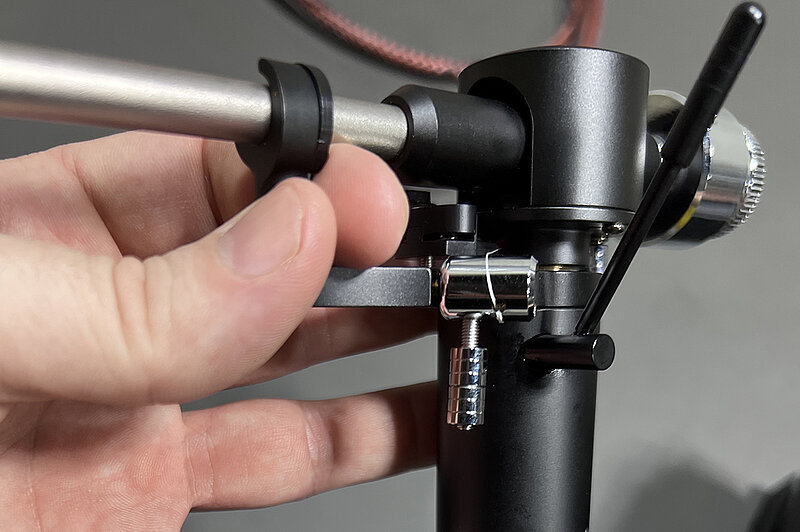

Fine adjustment Spring-loaded arm lift
Option Azimuth-adjustable headshell
Colours Satin Black, Satin Silver
Included cable Aluminium Aeshna Coven St
  Carbon Aeshna Spirit St
  Titanium Aeshna Mahone St

REVEALING THE FINEST DETAILS

Handcrafted tonearm with selected materials for the perfect sound of your favorite music.
